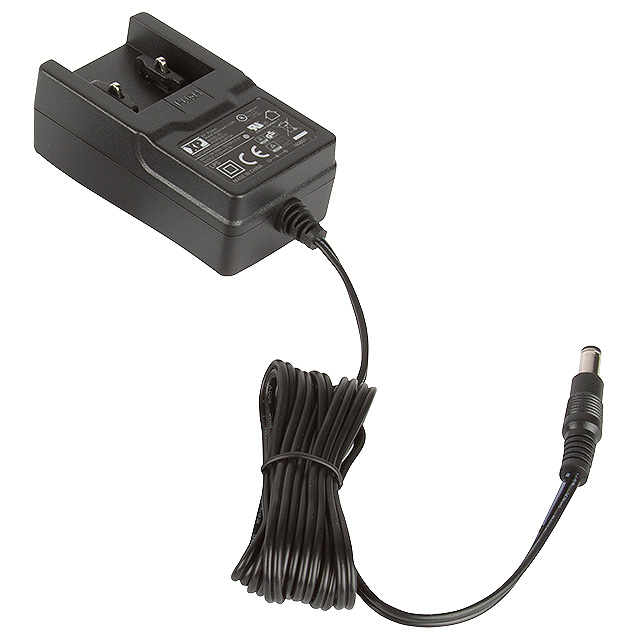

ACM06US05
ActiveXP POWER
AC/DC WALL MOUNT ADAPTER 5V 5W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACM06US05
ActiveXP POWER
AC/DC WALL MOUNT ADAPTER 5V 5W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACM06US05 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE, CB |
| Cord Length | 70.9 in |
| Cord Length | 1.8 m |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | CoC Tier 2, Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | Multi-Blade |
| Input Type | Multi-Blade (Sold Separately) |
| No Load Power Consumption [Max] | 75 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 11 mm |
| Power (Watts) | 5 W |
| Region Utilized | International |
| Size / Dimension [x] | 73.5 mm |
| Size / Dimension [x] | 2.89 in |
| Size / Dimension [y] | 42.5 mm |
| Size / Dimension [y] | 1.67 " |
| Size / Dimension [z] | 1.21 " |
| Size / Dimension [z] | 30.7 mm |
| Standard Number | 60601-1, 62368-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 5 V |
| Weight | 0.176 lb |
| Weight | 79.83 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 11.44 | |
| 5 | $ 11.10 | |||
| 10 | $ 10.75 | |||
| 25 | $ 10.30 | |||
| 100 | $ 9.61 | |||
Description
General part information
ACM06 Series
5V 5 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
