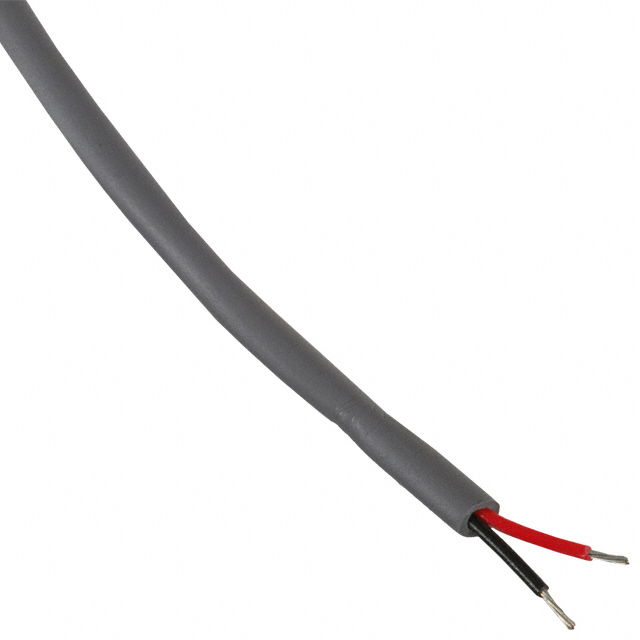

C6348A.18.10
ActivePrysmian Group
CABLE 2COND 22AWG GRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C6348A.18.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Annealed Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Jacket (Insulation) Diameter [diameter] | 3.3 mm |
| Jacket (Insulation) Diameter [diameter] | 0.13 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.015 in |
| Jacket (Insulation) Thickness | 0.381 mm |
| Jacket Color | Gray |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 2 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Ratings | ASTM B-33 |
| Usage | Control, Communication |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 129.04 | |
| 2 | $ 122.78 | |||
| 3 | $ 119.25 | |||
| 5 | $ 114.92 | |||
| 7 | $ 112.13 | |||
| 10 | $ 109.25 | |||
| 25 | $ 102.11 | |||
| 50 | $ 96.97 | |||
| 100 | $ 92.04 | |||
Description
General part information
C6348 Series
2 Conductor Multi-Conductor Cable Gray 22 AWG 500.0' (152.4m)
