Q-0L04K0008.25M

Active

Amphenol Custom Cable

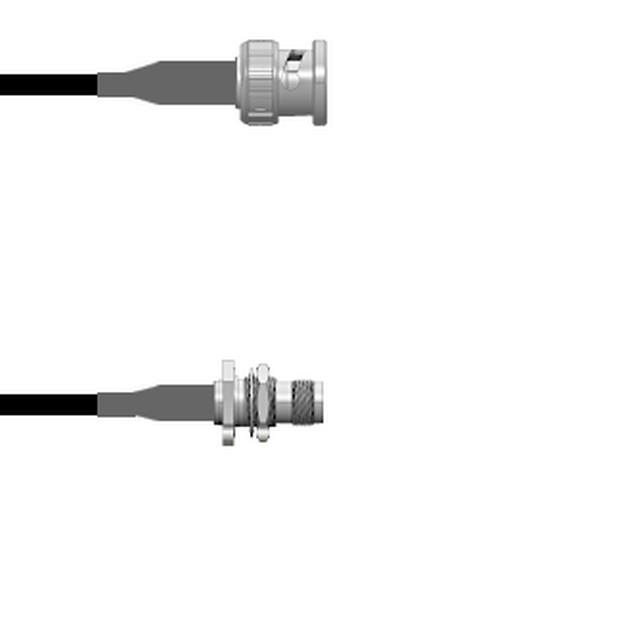

CBL ASSY BNC-TNC PLG-JACK 9.843"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0L04K0008.25M

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC PLG-JACK 9.843"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0L04K0008.25M

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-0L04K0 Series

Part	Style	2nd Contact Gender	Features	1st Contact Gender	1st Connector Mounting Type	1st Connector	Cable Type	Overall Impedance	Length	Length	Length	2nd Connector Mounting Feature	2nd Connector	Color	2nd Connector Mounting Type	Frequency - Max [Max]	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0L04K00082.5M	BNC to TNC	Female	Shielded	Male	Free Hanging (In-Line)	BNC Plug	RG-58	50 Ohms	8.2 '	98.4 in	2.5 m	Bulkhead - Front Side Nut	TNC Jack	Black	Panel Mount	4 GHz
Amphenol Custom Cable Q-0L04K0008.75M	BNC to TNC	Female	Shielded	Male	Free Hanging (In-Line)	BNC Plug	RG-58	50 Ohms		29.53 "	750 mm	Bulkhead - Front Side Nut	TNC Jack	Black	Panel Mount	4 GHz
Amphenol Custom Cable Q-0L04K0008048i	BNC to TNC	Female	Shielded	Male	Free Hanging (In-Line)	BNC Plug	RG-58	50 Ohms	4 ft	48 in	1200 mm	Bulkhead - Front Side Nut	TNC Jack	Black	Panel Mount	4 GHz
Amphenol Custom Cable Q-0L04K00081.5M	BNC to TNC	Female	Shielded	Male	Free Hanging (In-Line)	BNC Plug	RG-58	50 Ohms	4.9 ft	59.1 in	1.5 m	Bulkhead - Front Side Nut	TNC Jack	Black	Panel Mount	4 GHz
Amphenol Custom Cable Q-0L04K0008001M	BNC to TNC	Female	Shielded	Male	Free Hanging (In-Line)	BNC Plug	RG-58	50 Ohms	3.3 ft	39.4 in	1 m	Bulkhead - Front Side Nut	TNC Jack	Black	Panel Mount	4 GHz
Amphenol Custom Cable Q-0L04K0008084i	BNC to TNC	Female	Shielded	Male	Free Hanging (In-Line)	BNC Plug	RG-58	50 Ohms	7 ft	84 in	2.1 m	Bulkhead - Front Side Nut	TNC Jack	Black	Panel Mount	4 GHz
Amphenol Custom Cable Q-0L04K0008108i	BNC to TNC	Female	Shielded	Male	Free Hanging (In-Line)	BNC Plug	RG-58	50 Ohms	9 ft	108 in	2.7 m	Bulkhead - Front Side Nut	TNC Jack	Black	Panel Mount	4 GHz
Amphenol Custom Cable Q-0L04K0008036i	BNC to TNC	Female	Shielded	Male	Free Hanging (In-Line)	BNC Plug	RG-58	50 Ohms		36 in	91.44 cm	Bulkhead - Front Side Nut	TNC Jack	Black	Panel Mount	4 GHz
Amphenol Custom Cable Q-0L04K0008018i	BNC to TNC	Female	Shielded	Male	Free Hanging (In-Line)	BNC Plug	RG-58	50 Ohms				Bulkhead - Front Side Nut	TNC Jack	Black	Panel Mount	4 GHz	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0L04K0008.25M	BNC to TNC	Female	Shielded	Male	Free Hanging (In-Line)	BNC Plug	RG-58	50 Ohms					TNC Jack	Black	Free Hanging (In-Line)	4 GHz		250 mm	9.843 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 59.00
		25	$ 57.86
		50	$ 56.72
		100	$ 55.57
		250	$ 54.43

Description

General part information

Q-0L04K0 Series

Cable Assembly Coaxial BNC to TNC RG-58 9.843" (250.00mm)

Documents

Technical documentation and resources

No documents available
