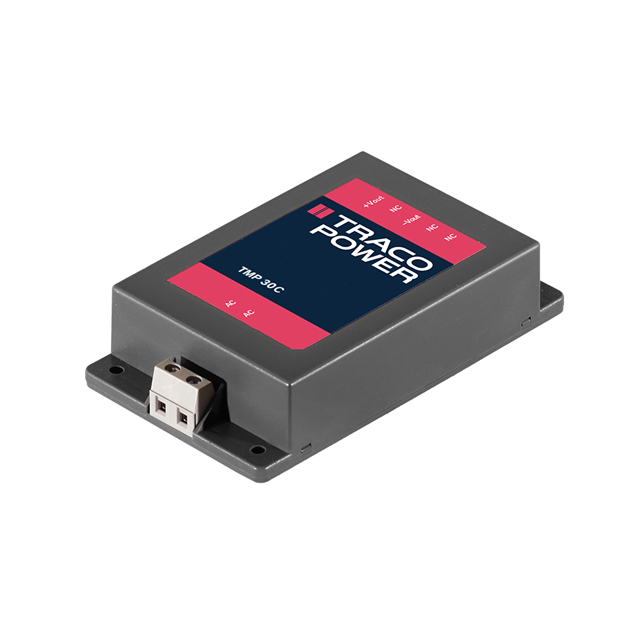

TMP 30148C

Active

Traco Power

AC/DC CONVERTER 48V 30W

Search across all available documentation for this part.

Active

Traco Power

AC/DC CONVERTER 48V 30W

Technical Specifications

Parameters and characteristics for this part

Specification	TMP 30148C

Applications	Industrial, ITE (Commercial)
Approval Agency	cULus, CE, cURus, CB
Efficiency	80 %
Features	Adjustable Output, Universal Input
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	30 W
Size / Dimension [x]	112 mm
Size / Dimension [x]	4.41 "
Size / Dimension [y]	63.8 mm
Size / Dimension [y]	2.51 "
Size / Dimension [z]	25.7 mm
Size / Dimension [z]	1.01 in
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Efficiency	Features	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Number of Outputs	Minimum Load Required	Applications	Approval Agency	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Isolation	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]
Traco Power TMP 30148C	80 %	Adjustable Output Universal Input	Chassis Mount	85 VAC 120 VDC	264 VAC 370 VDC	48 V	1		Industrial ITE (Commercial)	CB CE cULus cURus	Enclosed	63.8 mm	2.51 "	25.7 mm	1.01 in	112 mm	4.41 "	3000 V	30 W	-25 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 48V 85 ~ 264 VAC, 120 ~ 370 VDC Input
