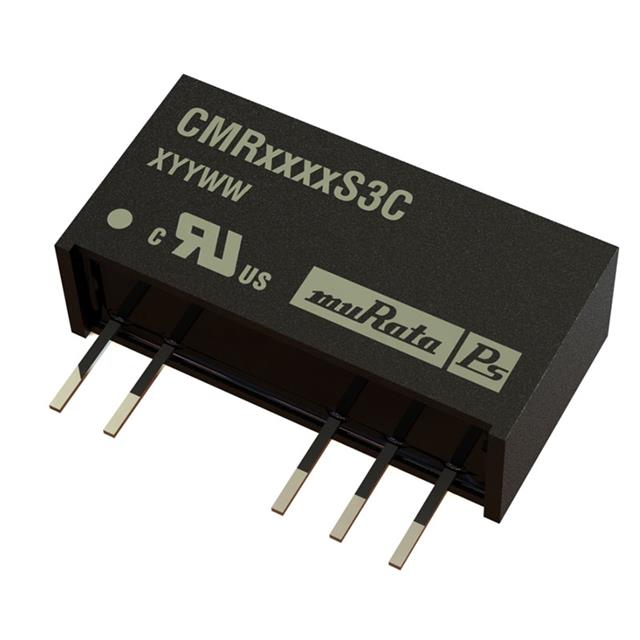

CMR0505SA3C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 5V 750MW
Deep-Dive with AI
Search across all available documentation for this part.
CMR0505SA3C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 5V 750MW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CMR0505SA3C |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 150 mA |
| Efficiency | 68 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-SIP Module, 4 Leads |
| Power (Watts) | 0.75 W |
| Size / Dimension [x] | 19.5 mm |
| Size / Dimension [x] | 0.77 " |
| Size / Dimension [y] | 6 mm |
| Size / Dimension [y] | 0.24 in |
| Size / Dimension [z] | 0.39 in |
| Size / Dimension [z] | 10 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CMR05 Series
Isolated Module DC DC Converter 1 Output 5V 150mA 4.5V - 5.5V Input
