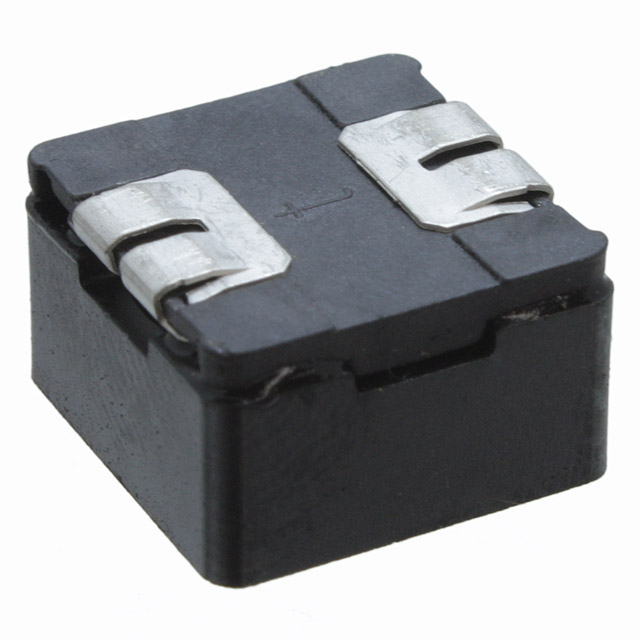

SRR1208-392KL

Active

Bourns Inc.

INDUCTOR,FERRITE,3.9MH,10+% TOL,10-% TOL,5050-CASE ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

SRR1208-392KL

Active

Bourns Inc.

INDUCTOR,FERRITE,3.9MH,10+% TOL,10-% TOL,5050-CASE ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRR1208-392KL

Current - Saturation (Isat)	320 mA
Current Rating (Amps)	300 mA
DC Resistance (DCR) [Max]	7.8 Ohm
Frequency - Self Resonant	450 kHz
Height - Seated (Max) [Max] [z]	0.335 in
Height - Seated (Max) [Max] [z]	8.5 mm
Inductance	3.9 mH
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Q @ Freq	252 kHz, 20
Shielding	Shielded
Tolerance	10 %
Type	Wirewound, Drum Core

SRR1208 Series

Part	Tolerance	Package / Case	Q @ Freq	Material - Core	DC Resistance (DCR) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current Rating (Amps)	Current - Saturation (Isat)	Frequency - Self Resonant	Mounting Type	Shielding	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance	DC Resistance (DCR)
Bourns Inc. SRR1208-392KL	10 %	Nonstandard	20 252 kHz	Ferrite	7.8 Ohm	125 °C	-40 °C	Drum Core Wirewound	300 mA	320 mA	450 kHz	Surface Mount	Shielded	0.335 in	8.5 mm	3.9 mH
Bourns Inc. SRR1208-2R5ML	20 %	Nonstandard	7.96 MHz 20	Ferrite	11 mOhm	125 °C	-40 °C	Drum Core Wirewound	7.5 A	10 A	37 MHz	Surface Mount	Shielded	0.335 in	8.5 mm	2.5 µH
Bourns Inc. SRR1208-152KL	10 %	Nonstandard		Ferrite	2.35 Ohm	125 °C	-40 °C	Drum Core Wirewound	360 mA	550 mA	750 kHz	Surface Mount	Shielded	0.335 in	8.5 mm	1.5 mH
Bourns Inc. SRR1208-270ML	20 %	Nonstandard	2.52 MHz 23	Ferrite		125 °C	-40 °C	Drum Core Wirewound	3 A	4.3 A	6.5 MHz	Surface Mount	Shielded	0.335 in	8.5 mm	27 µH
Bourns Inc. SRR1208-100M	20 %	Nonstandard	2.52 MHz 20	Ferrite	21 mOhm	125 °C	-40 °C	Drum Core Wirewound	5 A	6.7 A	15 MHz	Surface Mount	Shielded	0.335 in	8.5 mm	10 µH
Bourns Inc. SRR1208-681KL	10 %	Nonstandard	13 796 kHz	Ferrite	1 Ohm	125 °C	-40 °C	Drum Core Wirewound	600 mA	820 mA	1.2 MHz	Surface Mount	Shielded	0.335 in	8.5 mm	680 µH
Bourns Inc. SRR1208-471KL	10 %	Nonstandard	14 796 kHz	Ferrite	850 mOhm	125 °C	-40 °C	Drum Core Wirewound	700 mA	950 mA	1.4 MHz	Surface Mount	Shielded	0.335 in	8.5 mm
Bourns Inc. SRR1208-6R5ML	20 %	Nonstandard	7.96 MHz 25	Ferrite		125 °C	-40 °C	Drum Core Wirewound	6 A	8.4 A	20 MHz	Surface Mount	Shielded	0.335 in	8.5 mm	6.5 µH	18 mOhm
Bourns Inc. SRR1208-221K	10 %	Nonstandard	13 796 kHz	Ferrite	380 mOhm	125 °C	-40 °C	Drum Core Wirewound	1.1 A	1.45 A	2.5 MHz	Surface Mount	Shielded	0.335 in	8.5 mm	220 µH
Bourns Inc. SRR1208-120ML	20 %	Nonstandard	2.52 MHz 19	Ferrite		125 °C	-40 °C	Drum Core Wirewound	4.8 A	6.5 A	11 MHz	Surface Mount	Shielded	0.335 in	8.5 mm	12 µH	25 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.77
		10	$ 0.65
		25	$ 0.59
		50	$ 0.56
		100	$ 0.46
	Digi-Reel®	1	$ 0.77
		10	$ 0.65
		25	$ 0.59
		50	$ 0.56
		100	$ 0.46
	Tape & Reel (TR)	400	$ 0.43
		800	$ 0.42
Newark	Each (Supplied on Full Reel)	1	$ 0.60
		1000	$ 0.58
		2000	$ 0.52
		4000	$ 0.47
		6000	$ 0.45
		10000	$ 0.44

Description

General part information

SRR1208 Series

3.9 mH Shielded Drum Core, Wirewound Inductor 300 mA 7.8Ohm Max Nonstandard

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
