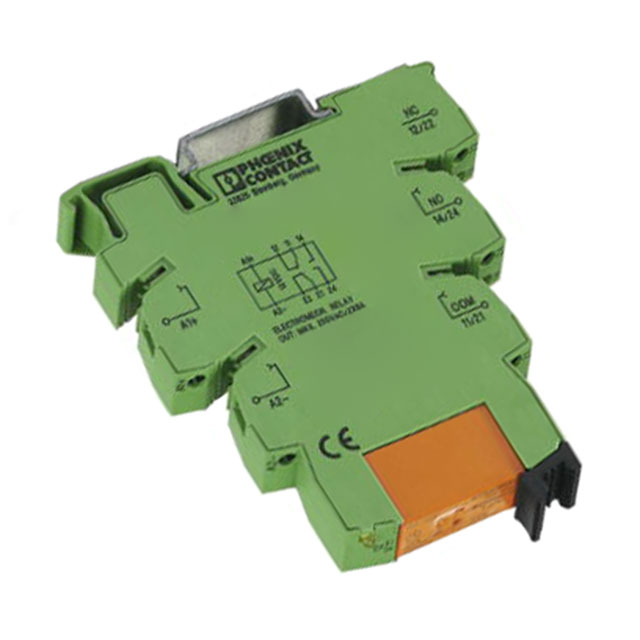

2900191

Obsolete

Phoenix Contact

RELAY GEN PURPOSE DPDT 6A 12V

Search across all available documentation for this part.

Obsolete

Phoenix Contact

RELAY GEN PURPOSE DPDT 6A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	2900191

Approval Agency	UKCA, CE
Coil Current	33 mA
Coil Resistance	364 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	6 A
Features	Socket Included, Diode, Lighted Indicator
Mounting Type	DIN Rail
Operate Time	8 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Screw Terminal

Part	Contact Material	Termination Style	Coil Voltage	Operate Time	Approval Agency	Coil Current	Relay Type	Features	Coil Type	Switching Voltage	Coil Resistance	Release Time	Contact Form	Mounting Type	Contact Rating (Current)	Operating Temperature [Min]	Operating Temperature [Max]
Phoenix Contact 2900191	Silver Nickel (AgNi)	Screw Terminal	12 VDC	8 ms	CE UKCA	33 mA	General Purpose	Diode Lighted Indicator Socket Included	Non Latching	250 VAC 250 VDC	364 Ohms	10 ms	DPDT (2 Form C)	DIN Rail	6 A	-20 C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay DPDT (2 Form C) 12VDC Coil DIN Rail
