3240842

Active

Phoenix Contact

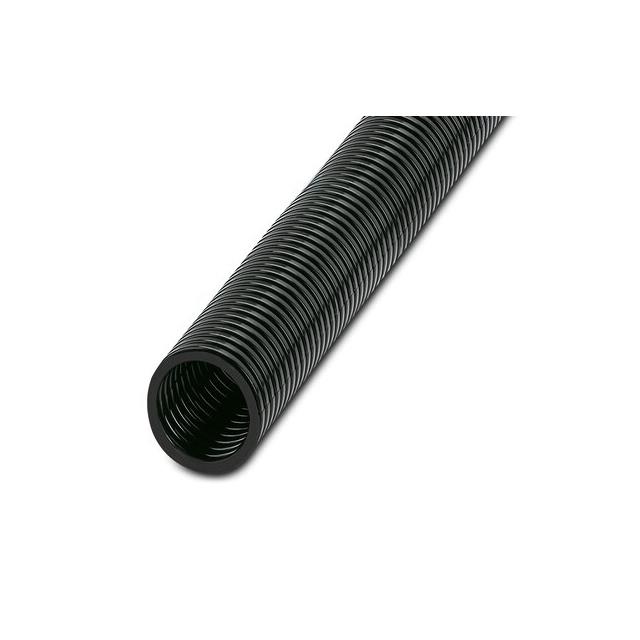

HOSE 0.906" ID POLY 3.28' BLACK

Search across all available documentation for this part.

Active

Phoenix Contact

HOSE 0.906" ID POLY 3.28' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	3240842

Color	Black
Diameter - Inside [diameter]	0.906 "
Diameter - Inside [diameter]	23 mm
Diameter - Outside [diameter]	28.49 mm
Diameter - Outside [diameter]	1.122 "
Environment Protection	UV Resistant
Features	Solvent Resistant, Airtight, Acid Resistant
Length [x]	1 m
Length [x]	3.28 ft
Liquid Protection	True, True, True
Material	Nylon, Polyamide (PA), Halogen Free
Material Flammability Rating	UL94 HB
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Type	Protective Hose, Wire Loom
Type Attributes	Convoluted, Corrugated

Part	Length [x]	Length [x]	Environment Protection	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Liquid Protection	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Type	Color	Type Attributes	Material Flammability Rating
Phoenix Contact 3240844	1 m	3.28 ft	UV Resistant	Halogen Free Nylon Polyamide (PA)	1.673 "	42.49 mm		1.417 in	36 mm	-40 °C	105 ░C	Acid Resistant Airtight Solvent Resistant	Protective Hose Wire Loom	Black	Convoluted Corrugated	UL94 HB
Phoenix Contact 3240842	1 m	3.28 ft	UV Resistant	Halogen Free Nylon Polyamide (PA)	1.122 "	28.49 mm		0.906 "	23 mm	-40 °C	105 ░C	Acid Resistant Airtight Solvent Resistant	Protective Hose Wire Loom	Black	Convoluted Corrugated	UL94 HB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 6.35
LCSC	Piece	1	$ 6.18

General part information

Black Polyamide (PA), Nylon, Halogen Free Convoluted, Corrugated Wire Loom, Protective Hose 0.906" (23.00mm) 3.28' (1.00m)

Technical documentation and resources
