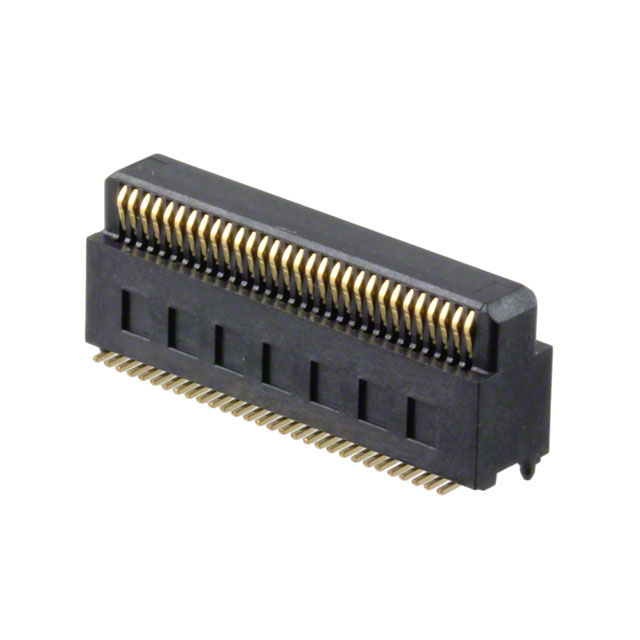

WR-60SB-VFH30-N1-R1000

Active

JAE Electronics

CONN RCPT 60POS SMD GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT 60POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	WR-60SB-VFH30-N1-R1000

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Board Guide
Height Above Board	6.25 mm
Height Above Board	0.246 in
Mated Stacking Heights	9 mm, 7 mm, 8 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Features	Pitch [x]	Pitch [x]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Number of Positions	Mounting Type	Number of Rows	Height Above Board	Height Above Board	Connector Type
JAE Electronics WR-60SB-VFH30-N1-R1000	Board Guide	0.5 mm	0.02 in	Gold	4 Áin	0.1 Ám	7 mm 8 mm 9 mm	60	Surface Mount	2	6.25 mm	0.246 in	Center Strip Contacts Receptacle
JAE Electronics WR-60SB-VF-N1-R1500	Board Guide	0.5 mm	0.02 in	Gold	4 Áin	0.1 Ám	4 mm 5 mm 6 mm	60	Surface Mount	2	3.25 mm	0.128 in	Center Strip Contacts Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

60 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
