195207-228
ActiveLedex Dormeyer Saia, a Division of Johnson Electric

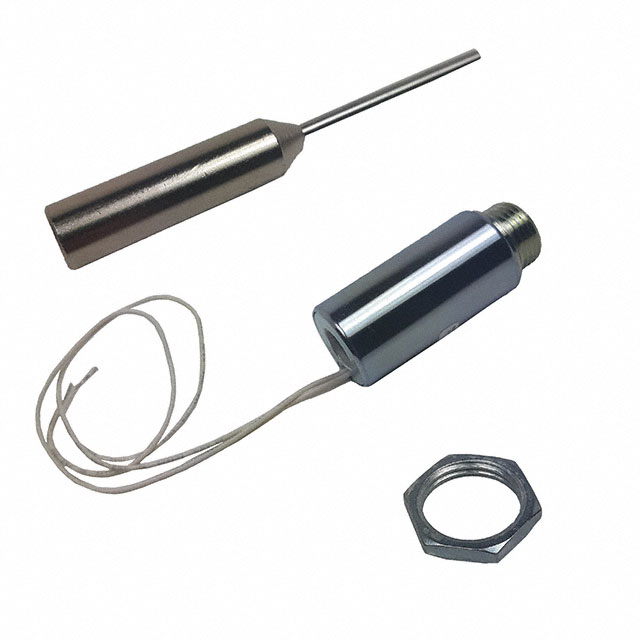

TUBULAR SOLENOID STA PUSH 1 X 2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
195207-228
ActiveLedex Dormeyer Saia, a Division of Johnson Electric
TUBULAR SOLENOID STA PUSH 1 X 2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 195207-228 |
|---|---|
| Bushing Thread | 3/4-16 UNF |
| DC Resistance (DCR) | 19.2 Ohm |
| Diameter - Shaft [diameter] | 0.125 in |
| Diameter - Shaft [diameter] | 3.18 mm |
| Shaft Detail | Round |
| Size / Dimension [diameter] | 25.4 mm |
| Size / Dimension [diameter] | 25.4 mm |
| Size / Dimension [z] | 50.8 mm |
| Size / Dimension [z] | 50.8 mm |
| Technology | Electromechanical |
| Termination Style | Wire Leads |
| Type | Tubular, Closed Frame (Push) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 39.53 | |
| 10 | $ 35.20 | |||
| 25 | $ 33.61 | |||
| 50 | $ 32.46 | |||
| 100 | $ 31.34 | |||
| 250 | $ 29.92 | |||
Description
General part information
195207 Series
Duty Solenoid Closed Frame (Push), Tubular Type Stroke Panel Mount
