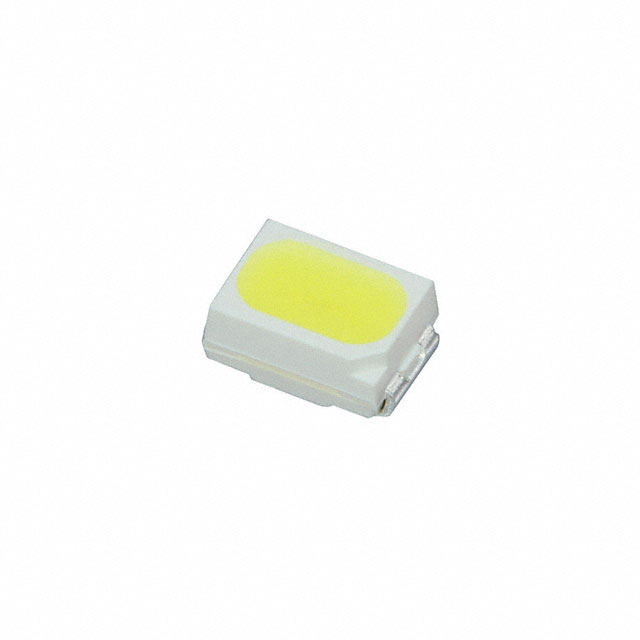

CLM3C-MKW-CWAXB133
ActiveLED WARM WHITE DIFF 2PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
CLM3C-MKW-CWAXB133
ActiveLED WARM WHITE DIFF 2PLCC SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CLM3C-MKW-CWAXB133 |
|---|---|
| Color | White, Warm |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 1.4 mm |
| Lens Color | Yellow |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 1960 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Size / Dimension [x] | 2.7 mm |
| Size / Dimension [y] | 2 mm |
| Supplier Device Package | 2-PLCC |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
| Wavelength - Dominant | 3200 K |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.24 | |
| 10 | $ 0.22 | |||
| 100 | $ 0.21 | |||
| 1000 | $ 0.18 | |||
| Digi-Reel® | 1 | $ 0.24 | ||
| 10 | $ 0.22 | |||
| 100 | $ 0.21 | |||
| 1000 | $ 0.18 | |||
| Tape & Reel (TR) | 3000 | $ 0.18 | ||
Description
General part information
CLM3C Series
SMD LEDs is packaged in the industry standard package. These LEDs have high reliability performance and are designed to work under a wide range of environmental conditions. This high reliability feature makes them ideally suited to be used under illuminatSize (mm):2.7 x 2.0 • Color Temperatures(K): Cool White : Min . (4600) / Typical (5500) Warm White : Min . (2500) / Typical (3200) • Luminous Intensity (mcd) CLM3C-WKW:(1400 - 3550) CLM3C-MKW:(1120 - 2800) • CRI Typical CRI for Cool White is 72 Typical CR
