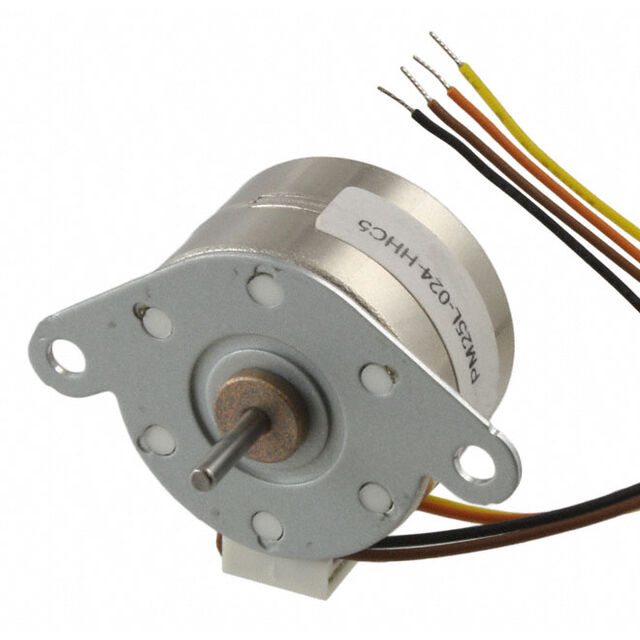

PM25L-024-HHC5
ActiveNMB TECHNOLOGIES
STEPPER MOTOR, PERMANENT MAGNET, PERMANENT MAGNET, BIPOLAR, 18 °, 25 MN-M, 600 MA
Deep-Dive with AI
Search across all available documentation for this part.
PM25L-024-HHC5
ActiveNMB TECHNOLOGIES
STEPPER MOTOR, PERMANENT MAGNET, PERMANENT MAGNET, BIPOLAR, 18 °, 25 MN-M, 600 MA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PM25L-024-HHC5 |
|---|---|
| Coil Resistance | 8 Ohms |
| Coil Type | Bipolar |
| Current Rating (Amps) | 600 mA |
| Diameter - Shaft [diameter] | 2 mm |
| Diameter - Shaft [diameter] | 0.079 in |
| Features | Round Shaft |
| Length - Shaft and Bearing [x] | 0.394 in |
| Length - Shaft and Bearing [x] | 10 mm |
| Mounting Hole Spacing | 1.26 in |
| Mounting Hole Spacing | 32 mm |
| Size / Dimension [diameter] | 0.984 " |
| Size / Dimension [diameter] | 25 mm |
| Step Angle | 15 ° |
| Steps per Revolution | 24 |
| Termination Style | Wire Leads |
| Torque - Holding (oz-in / mNm) | 26 mNm |
| Torque - Holding (oz-in / mNm) | 3.7 oz-in |
| Type | Permanent Magnet |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PM25L Series
Bipolar Stepper Motor Permanent Magnet Frame Size 24.0 Step 600 mA 24VDC
