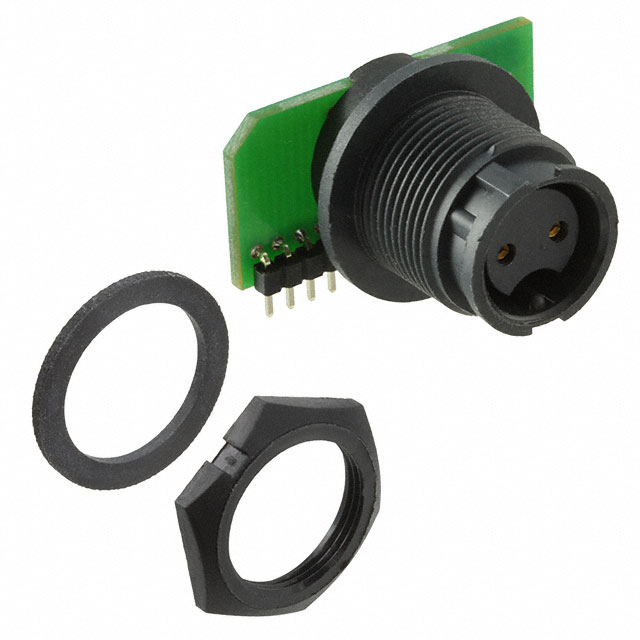

7251-2SG-300

Active

Conxall/Switchcraft

CONN RCPT FMALE 2POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 2POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	7251-2SG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Circuit Board, Solder

Part	Connector Type	Contact Finish - Mating	Ingress Protection	Current Rating (Amps)	Primary Material	Mounting Feature	Insert Material	Fastening Type	Shielding	Backshell Material, Plating	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Mounting Type	Applications	Termination	Color	Material Flammability Rating	Contact Material
Conxall/Switchcraft 7251-2SG-300	Receptacle Female Sockets	Gold	Weathertight	Varies by Wire Gauge	Plastic	Bulkhead - Front Side Nut	Thermoplastic	Bayonet Lock	Unshielded	Nylon Polyamide (PA)	2	85 °C	-40 °C	Keyed	Panel Mount Right Angle Through Hole	Automotive Communication Systems Instrumentation	Circuit Board Solder	Black	UL94 V-0	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Female Sockets Circuit Board, Solder

Technical documentation and resources

No documents available
