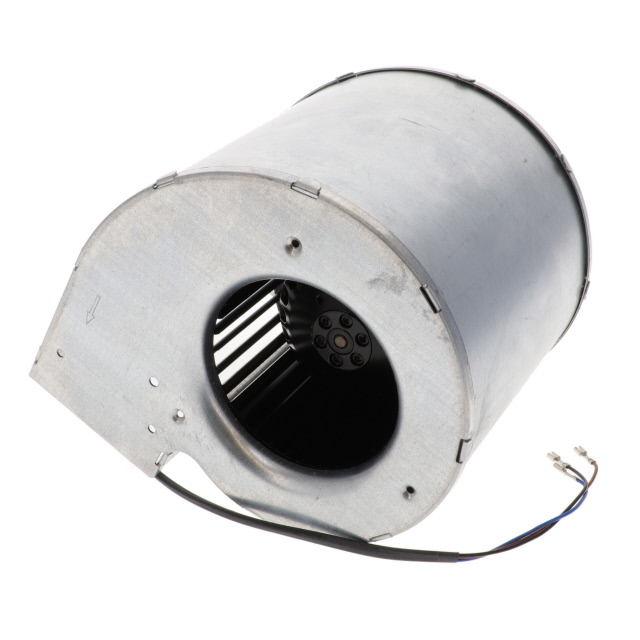

D2E097-BI52-A4

Active

ebm-papst Inc.

BLOWER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D2E097-BI52-A4

Active

ebm-papst Inc.

BLOWER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D2E097-BI52-A4

Approval Agency	CE, EAC
Bearing Type	Ball
Current Rating (Amps)	0.26 A
Fan Type	Blower, Centrifugal
Features	Capacitor, Thermal Overload Protector (TOP)
Material - Blade	Steel
Material - Frame	Steel
Operating Temperature [Max]	90 °C
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	58 W
RPM	2700 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	161 mm
Size / Dimension [y]	165 mm
Termination	3 Wire Leads with QC Receptacles
Voltage - Rated	230 VAC
Width	146 mm

D2E097 Series

Blowers & Centrifugal Fans AC Centrifugal Blower

Part	Termination	Current Rating (Amps)	Approval Agency	Fan Type	Bearing Type	Width	RPM	Power (Watts)	Ingress Protection	Material - Blade	Features	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension	Material - Frame	Weight	Weight	Width [y]	Size / Dimension [z]	Size / Dimension [diameter]	Air Flow	Air Flow	Noise	Operating Temperature [Max]
ebm-papst Inc. D2E097-BE01-02	3 Wire Leads	0.26 A	CCC CE EAC	Blower Centrifugal	Ball	146 mm	1200 RPM	54 W	IP22	Steel	Capacitor Thermal Overload Protector (TOP)	50 °C	-25 °C	-25 °C	50 °C	230 VAC	165 mm	161 mm	Rectangular/Rounded	Steel
ebm-papst Inc. D2E097-BI56-83	2 Wire Leads		CCC CE GOST	Blower Centrifugal	Ball					Steel						230 VAC		162 mm	Rectangular/Rounded	Steel	3.2 lbs	1.5 kg	180 mm	165 mm
ebm-papst Inc. D2E097-BK80-02	4 Wire Leads	0.34 A	CE	Blower Centrifugal	Ball	146 mm	1750 RPM	77 W		Steel	Capacitor Thermal Overload Protector (TOP)	30 °C	-25 °C	-25 °C	30 °C	230 VAC	165 mm	161 mm	Rectangular/Rounded	Steel
ebm-papst Inc. D2E097-CB01-12	2 Wire Leads			Blower Centrifugal	Ball			42 W		Steel						230 VAC	137 mm	144 mm		Steel	2.9 lbs	1.3 kg	140 mm		97 mm	106 CFM	2.97 mł/min	47 dB
ebm-papst Inc. D2E097-BI52-A4	3 Wire Leads with QC Receptacles	0.26 A	CE EAC	Blower Centrifugal	Ball	146 mm	2700 RPM	58 W		Steel	Capacitor Thermal Overload Protector (TOP)	90 °C	-25 °C	-25 °C		230 VAC	165 mm	161 mm	Rectangular/Rounded	Steel									90 °C
ebm-papst Inc. D2E097-CB01-02	2 Wire Leads			Blower Centrifugal	Ball			42 W		Steel						230 VAC	137 mm	144 mm		Steel	2.9 lbs	1.3 kg	140 mm		97 mm	106 CFM	2.97 mł/min	47 dB
ebm-papst Inc. D2E097-BI56-A4	3 Wire Leads	450 mA	CE	Blower Centrifugal	Ball	146 mm	1850 RPM	100 W		Steel		80 C	-40 °C	-40 °C	80 °C	230 VAC	165 mm	161 mm	Rectangular	Steel	3.3 lbs	1.5 kg			97 mm
ebm-papst Inc. D2E097-CB11-32	2 Wire Leads		CCC CE CSA UL	Blower Centrifugal	Ball			43 W		Steel						115 VAC	137 mm	144 mm		Steel	2.7 lbs	1.2 kg	140 mm		97 mm	120 CFM	3.36 m³/min	47 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 289.77
		10	$ 266.89
		25	$ 249.74

Description

General part information

D2E097 Series

Blowers & Centrifugal Fans AC Centrifugal Blower
