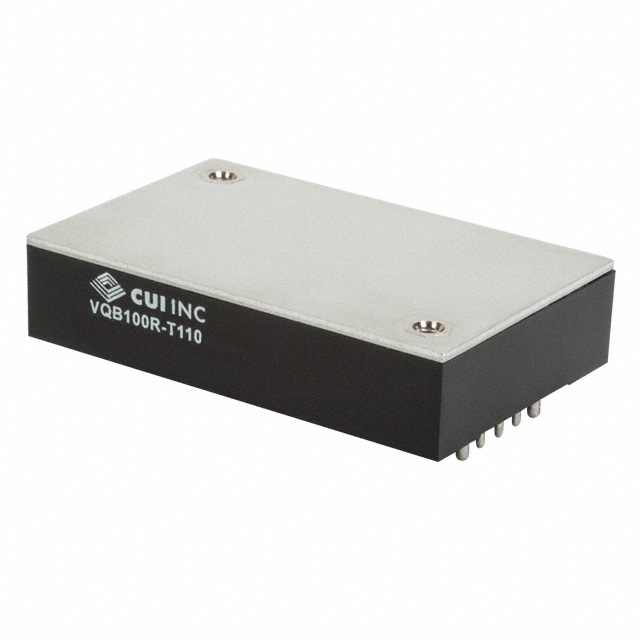

VQB100R-T110-S24

Active

CUI Inc.

DC DC CONVERTER 24V 100W

Search across all available documentation for this part.

Active

CUI Inc.

DC DC CONVERTER 24V 100W

Technical Specifications

Parameters and characteristics for this part

Specification	VQB100R-T110-S24

Applications	Railway, ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	4.2 A
Efficiency	91 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	1/4 Brick, 8-DIP Module
Power (Watts)	100 W
Size / Dimension [x]	57.9 mm
Size / Dimension [x]	2.28 in
Size / Dimension [y]	1.45 in
Size / Dimension [y]	36.8 mm
Size / Dimension [z]	12.7 mm
Size / Dimension [z]	0.5 in
Type	Isolated Module
Voltage - Input (Max) [Max]	160 V
Voltage - Input (Min) [Min]	66 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	24 V

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Applications	Power (Watts)	Features	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Control Features	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Output 1	Package / Case	Efficiency	Voltage - Input (Max) [Max]	Type	Mounting Type
CUI Inc. VQB100R-T110-S24	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	ITE (Commercial) Railway	100 W	OCP OTP OVP Remote On/Off SCP UVLO	4.2 A	66 V	Active High Enable	2250 VDC	100 °C	-40 °C	1	24 V	1/4 Brick 8-DIP Module	91 %	160 V	Isolated Module	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	48	$ 167.78

General part information

Isolated Module DC DC Converter 1 Output 24V 4.2A 66V - 160V Input
