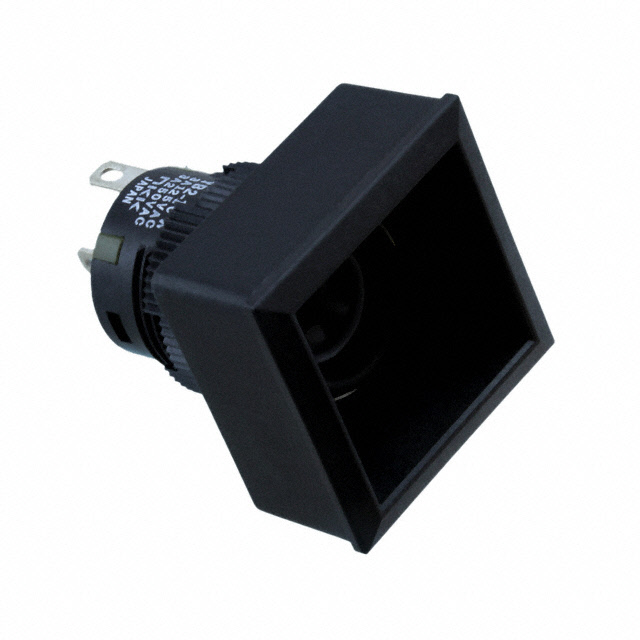

YB216CWSKW01

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB216CWSKW01

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB216CWSKW01

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Tactile Feedback
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	21 mm
Panel Cutout Dimensions [y]	21 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB216C Series

Part	Current Rating (Amps)	Actuator Type	Mounting Type	Type	Electrical Life	Features	Switch Function	Circuit	Color - Actuator/Cap	Illumination Voltage (Nominal)	Panel Cutout Dimensions [diameter]	Ingress Protection	Voltage Rating - DC	Illumination Type, Color	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Mechanical Life	Termination Style	Termination Style	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
NKK Switches YB216CWCKG01-5C-CB	0.4 VA	Button Flush Round	Panel Mount Front	Illuminated Standard	100000 Cycles	Tactile Feedback	On-On	SPDT	Red	1.9 VDC	22 mm	IP65 - Dust Tight Water Resistant	28 V	LED Red	No Marking	50 °C	-25 °C	28 V	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB216CWSKW01	3 A	Plunger for Cap	Panel Mount Front	Standard	100000 Cycles	Tactile Feedback	On-On	SPDT				IP65 - Dust Tight Water Resistant	30 V		No Marking	70 °C	-25 °C	125 V	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	21 mm	21 mm
NKK Switches YB216CWSPW01-N-P	3 A		Panel Mount Front	Standard	100000 Cycles	Tactile Feedback	On-On	SPDT	Brushed Chrome			IP65 - Dust Tight Water Resistant	30 V		No Marking	70 °C	-25 °C	125 V	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	21 mm	21 mm
NKK Switches YB216CWSKW01/CUL	3 A	Plunger for Cap	Panel Mount Front	Standard	100000 Cycles	Tactile Feedback	On-On	SPDT				IP65 - Dust Tight Water Resistant	30 V		No Marking	70 °C	-25 °C	125 V	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	21 mm	21 mm
NKK Switches YB216CWCKW01-6B-JB	3 A	Button Flush Round	Panel Mount Front	Illuminated Standard	100000 Cycles	Tactile Feedback	On-On	SPDT	Clear	3.3 VDC	22 mm	IP65 - Dust Tight Water Resistant	30 V	LED White	No Marking	50 °C	-25 °C	125 V	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB216CWCPW01-6G-JS	3 A	Button Flush Round	Panel Mount Front	Illuminated Standard	100000 Cycles	Tactile Feedback	On-On	SPDT	Silver	3.6 VDC	22 mm	IP65 - Dust Tight Water Resistant	30 V	Blue LED	No Marking	50 °C	-25 °C	125 V	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB216CWCKW01/CUL-5C12-CB	3 A	Button Flush Round	Panel Mount Front	Illuminated Standard	100000 Cycles		On-On	DPDT	Red	12 VDC	22 mm	IP65 - Dust Tight Water Resistant	30 V	LED Red		50 °C	-25 °C	125 V	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB216CWCSG01	0.4 VA	Plunger for Cap	Panel Mount Front	Standard	100000 Cycles	Tactile Feedback	On-On	SPDT			22 mm	IP65 - Dust Tight Water Resistant	28 V		No Marking	70 °C	-25 °C	28 V	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB216CWCKW01-N-CB	3 A	Button Flush Round	Panel Mount Front	Standard	100000 Cycles	Tactile Feedback	On-On	SPDT	Red		22 mm	IP65 - Dust Tight Water Resistant	30 V		No Marking	70 °C	-25 °C	125 V	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB216CWSKW01-5D24-JB	3 A		Panel Mount Front	Illuminated Standard	100000 Cycles	Tactile Feedback	On-On	SPDT	Clear	24 V		IP65 - Dust Tight Water Resistant	30 V	Amber LED	No Marking	50 °C	-25 °C	125 V	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	21 mm	21 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.61
		10	$ 21.23
		25	$ 20.02
		50	$ 19.14
		100	$ 19.13
Newark	Each	1	$ 42.42
		5	$ 37.83
		10	$ 36.54
		25	$ 34.52
		50	$ 32.13
		100	$ 28.46
		250	$ 25.52

Description

General part information

YB216C Series

Pushbutton Switch SPDT Standard Panel Mount, Front
