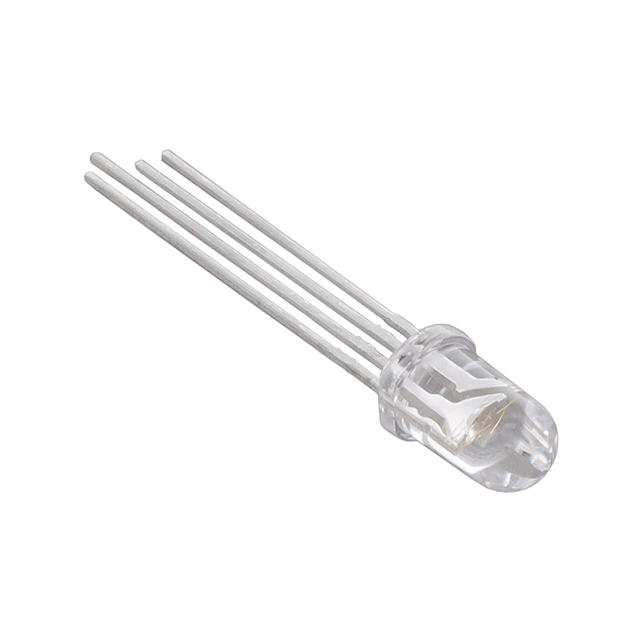

5218559F
ActiveDIALIGHT
LED RGB CLEAR 5MM T/H
Deep-Dive with AI
Search across all available documentation for this part.
5218559F
ActiveDIALIGHT
LED RGB CLEAR 5MM T/H
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5218559F |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Common Anode |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Height (Max) [Max] [z] | 8.6 mm |
| Lens Size [diameter] | 5 mm Dia |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 1900 mcd |
| Millicandela Rating [custom] | 2500 mcd |
| Millicandela Rating [custom] | 1450 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial - 4 Leads |
| Size / Dimension [diameter] | 5 mm |
| Supplier Device Package | 5 mm |
| Viewing Angle | 50 ° |
| Voltage - Forward (Vf) (Typ) [custom] | 3.2 V |
| Voltage - Forward (Vf) (Typ) [custom] | 2.2 V |
| Voltage - Forward (Vf) (Typ) [custom] | 3.3 V |
| Wavelength - Dominant | 525 nm, 625 nm, 470 nm |
| Wavelength - Peak | 525 nm, 470 nm, 634 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.02 | |
| 10 | $ 0.62 | |||
| 100 | $ 0.42 | |||
| 500 | $ 0.34 | |||
| 1000 | $ 0.32 | |||
| 2000 | $ 0.30 | |||
| 5000 | $ 0.28 | |||
| 10000 | $ 0.26 | |||
| 25000 | $ 0.25 | |||
Description
General part information
5218559 Series
Red, Green, Blue (RGB) 625nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2.2V Red, 3.2V Green, 3.3V Blue Radial - 4 Leads
Documents
Technical documentation and resources
No documents available
