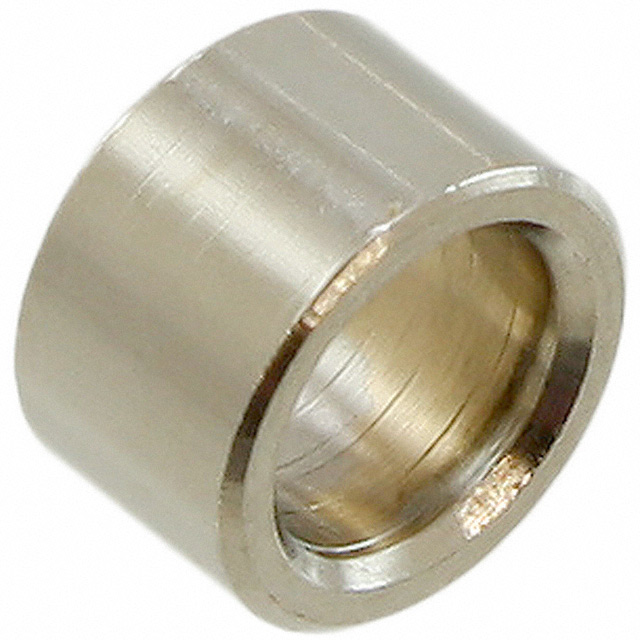

R40-6000402

Active

Harwin Inc.

SPACER, ROUND, M4, BRASS, 4MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

SPACER, ROUND, M4, BRASS, 4MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Type	Gender	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Plating	Screw, Thread Size	Between Board Height	Between Board Height	Length - Overall [x]	Length - Overall [x]	Threaded/Unthreaded	Material
Harwin Inc. R40-6000902	6.35 mm	0.25 in	0.25 in	Round Spacer	Female	0.173 "	4.4 mm	Nickel	M4	0.354 in	9 mm	0.354 in	9 mm	Unthreaded	Brass
Harwin Inc. R40-6001202	6.35 mm	0.25 in	0.25 in	Round Spacer	Female	0.173 "	4.4 mm	Nickel	M4	0.472 in	12 mm	0.472 in	12 mm	Unthreaded	Brass
Harwin Inc. R40-6001002	6.35 mm	0.25 in	0.25 in	Round Spacer	Female	0.173 "	4.4 mm	Nickel	M4	0.394 in	10 mm	0.394 "	10 mm	Unthreaded	Brass
Harwin Inc. R40-6000402	6.35 mm	0.25 in	0.25 in	Round Spacer	Female	0.173 "	4.4 mm	Nickel	M4	0.157 in	4 mm	0.157 in	4 mm	Unthreaded	Brass
Harwin Inc. R40-6000502	6.35 mm	0.25 in	0.25 in	Round Spacer	Female	0.173 "	4.4 mm	Nickel	M4	0.197 in	5 mm	0.197 "	5 mm	Unthreaded	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Round Spacer Unthreaded M4 Brass 0.157" (4.00mm)

Technical documentation and resources
