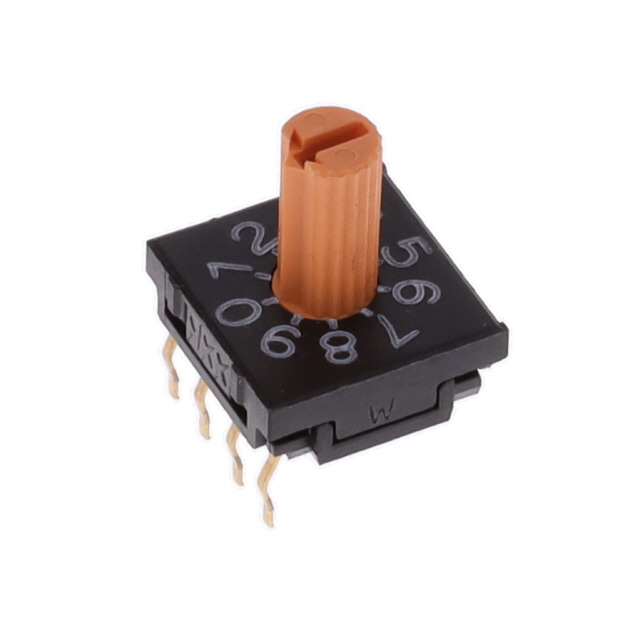

FR01KR10P-W

Active

NKK Switches

SWITCH ROTARY DIP BCD 0.1A 5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DR, FR01 Extra Character

FR01KR10P-W

Active

NKK Switches

SWITCH ROTARY DIP BCD 0.1A 5V

Deep-Dive with AI

DocumentsDatasheet DR, FR01 Extra Character

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FR01KR10P-W

Actuator Level	Raised
Actuator Type	Rotary with Shaft
Body Material	Polyamide (PA), Nylon, Glass Filled
Circuit	BCD
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	100 mA
Electrical Life	10000 Cycles
Height Above Board [z]	0.426 in
Height Above Board [z]	10.82 mm
Length	10 mm
Length	0.394 in
Mechanical Life	10000 Steps
Mounting Type	Through Hole
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	5 V
Washable	True

FR01KR10 Series

Part	Termination Style	Contact Material	Mechanical Life	Number of Positions	Voltage Rating	Height Above Board [z]	Height Above Board [z]	Circuit	Mounting Type	Length	Length	Electrical Life	Actuator Level	Current Rating (Amps)	Contact Finish	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch	Pitch [x]	Body Material
NKK Switches FR01KR10H-06XL-W	PC Pin	Copper Alloy	10000 Steps	10	5 V	10 mm	0.394 in	BCD	Through Hole Right Angle	10 mm	0.394 in	10000 Cycles	Raised	100 mA	Gold	Rotary with Shaft	-25 °C	85 °C	0.1 in	Full	2.54 mm	Polyamide (PA) Nylon Glass Filled
NKK Switches FR01KR10P	PC Pin	Copper Alloy	10000 Steps	10	5 V	10.82 mm	0.426 in	BCD	Through Hole	10 mm	0.394 in	10000 Cycles	Raised	100 mA	Gold	Rotary with Shaft	-25 °C	85 °C	0.1 in	Full	2.54 mm	Polyamide (PA) Nylon Glass Filled
NKK Switches FR01KR10H-S	PC Pin	Copper Alloy	10000 Steps	10	5 V	10 mm	0.394 in	BCD	Through Hole Right Angle	10 mm	0.394 in	10000 Cycles	Raised	100 mA	Gold	Rotary with Shaft	-25 °C	85 °C	0.1 in	Full	2.54 mm	Polyamide (PA) Nylon Glass Filled
NKK Switches FR01KR10P-W-S	PC Pin	Copper Alloy	10000 Steps	10	5 V	10.82 mm	0.426 in	BCD	Through Hole	10 mm	0.394 in	10000 Cycles	Raised	100 mA	Gold	Rotary with Shaft	-25 °C	85 °C	0.1 in	Full	2.54 mm	Polyamide (PA) Nylon Glass Filled
NKK Switches FR01KR10P-W	PC Pin	Copper Alloy	10000 Steps	10	5 V	10.82 mm	0.426 in	BCD	Through Hole	10 mm	0.394 in	10000 Cycles	Raised	100 mA	Gold	Rotary with Shaft	-25 °C	85 °C	0.1 in	Full	2.54 mm	Polyamide (PA) Nylon Glass Filled
NKK Switches FR01KR10H-06XL-S	PC Pin	Copper Alloy	10000 Steps	10	5 V	10 mm	0.394 in	BCD	Through Hole Right Angle	10 mm	0.394 in	10000 Cycles	Raised	100 mA	Gold	Rotary with Shaft	-25 °C	85 °C	0.1 in	Full	2.54 mm	Polyamide (PA) Nylon Glass Filled
NKK Switches FR01KR10H-06XL	PC Pin	Copper Alloy	10000 Steps	10	5 V	10 mm	0.394 in	BCD	Through Hole Right Angle	10 mm	0.394 in	10000 Cycles	Raised	100 mA	Gold	Rotary with Shaft	-25 °C	85 °C	0.1 in	Full	2.54 mm	Polyamide (PA) Nylon Glass Filled

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.46
		10	$ 4.27
		25	$ 3.90
		100	$ 3.38
		250	$ 3.07
		500	$ 2.84
		1000	$ 2.64
		2500	$ 2.40
Newark	Each	1	$ 8.73
		10	$ 8.38
		25	$ 8.13
		50	$ 7.52
		100	$ 6.86
		250	$ 6.02
		500	$ 5.39
		1000	$ 5.07

Description

General part information

FR01KR10 Series

Dip Switch BCD 10 Position Through Hole Rotary with Shaft Actuator 100mA 5VDC

Documents

Technical documentation and resources

Datasheet

DR, FR01 Extra Character

Datasheet
