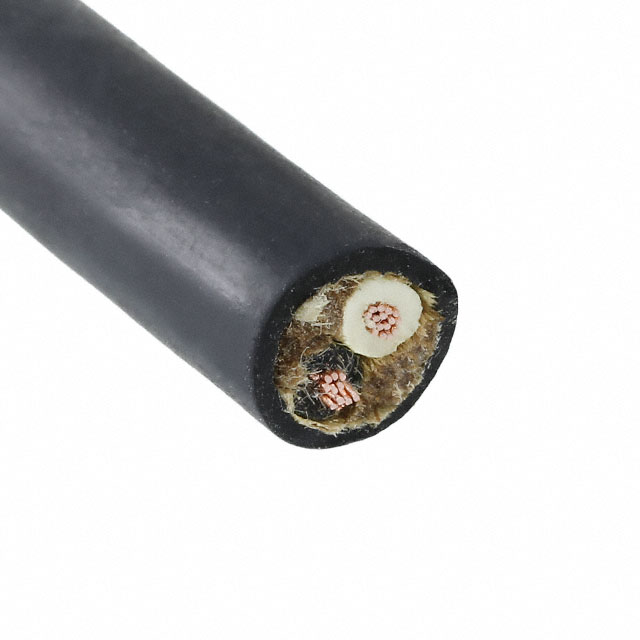

1932 BK003
ActiveALPHA WIRE
CABLE 2COND 18AWG BLACK 50'
Deep-Dive with AI
Search across all available documentation for this part.
1932 BK003
ActiveALPHA WIRE
CABLE 2COND 18AWG BLACK 50'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1932 BK003 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Rubber |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 16 |
| Conductor Strand [custom] | 30 AWG |
| Jacket (Insulation) Diameter [diameter] | 7.47 mm |
| Jacket (Insulation) Diameter [diameter] | 0.294 in |
| Jacket (Insulation) Material | Polyethylene (PE) |
| Jacket (Insulation) Thickness | 0.864 mm |
| Jacket (Insulation) Thickness | 0.034 in |
| Jacket Color | Black |
| Length | 10 ft |
| Length | 3.05 m, 15.24 m |
| Length [x] | 30.5 m |
| Length [x] | 100 ft, 50 ft |
| Number of Conductors | 2 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Voltage | 300 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 127.17 | |
| 1 | $ 31.73 | |||
| 1 | $ 265.97 | |||
| 2 | $ 121.00 | |||
| 3 | $ 117.52 | |||
| 3 | $ 29.46 | |||
| 3 | $ 247.38 | |||
| 5 | $ 27.90 | |||
| 5 | $ 233.08 | |||
| 5 | $ 113.24 | |||
| 7 | $ 110.50 | |||
| 10 | $ 107.65 | |||
| 10 | $ 221.64 | |||
| 10 | $ 26.34 | |||
| 25 | $ 205.91 | |||
| 25 | $ 24.50 | |||
| 25 | $ 100.60 | |||
| 50 | $ 185.90 | |||
| 50 | $ 23.09 | |||
| 50 | $ 95.52 | |||
| 100 | $ 21.95 | |||
| 100 | $ 90.64 | |||
Description
General part information
1932 Series
2 Conductor Multi-Conductor Cable Black 18 AWG 50.00' (15.24m)
