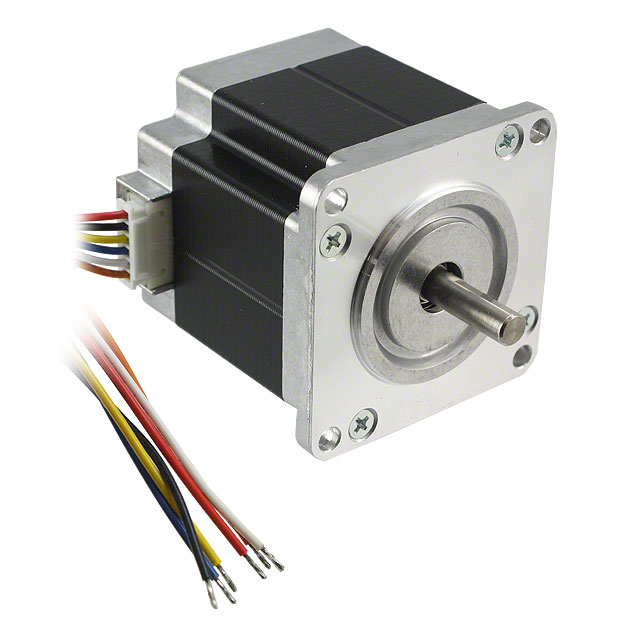

STEPPER MOTOR, STANDARD HYBRID, SINGLE SHAFT, HYBRID, 56.4 MM, UNIPOLAR, 1.8 °, 900 MN-M, 1 A
Deep-Dive with AI
Search across all available documentation for this part.
23KM-K066-00V
ActiveNMB TECHNOLOGIES
STEPPER MOTOR, STANDARD HYBRID, SINGLE SHAFT, HYBRID, 56.4 MM, UNIPOLAR, 1.8 °, 900 MN-M, 1 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 23KM-K066-00V |
|---|---|
| Accuracy | Ý5% |
| Coil Resistance | 7 Ohms |
| Coil Type | Unipolar |
| Current Rating (Amps) | 1 A |
| Diameter - Shaft [diameter] | 0.25 in |
| Diameter - Shaft [diameter] | 6.35 mm |
| Features | Flatted Shaft |
| Length - Shaft and Bearing | 0.984 in |
| Length - Shaft and Bearing | 25 mm |
| Mounting Hole Spacing | 47.14 mm |
| Mounting Hole Spacing | 1.856 in |
| NEMA Frame Size | 23 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -10 °C |
| Rotor Inertia | 200 gcm˛ |
| Size / Dimension [x] | 56.4 mm |
| Size / Dimension [x] | 2.22 in |
| Size / Dimension [y] | 56.4 mm |
| Size / Dimension [y] | 2.22 in |
| Step Angle | 1.8¯ |
| Steps per Revolution | 200 |
| Torque - Holding (oz-in / mNm) | 127.47 oz-in |
| Torque - Holding (oz-in / mNm) | 900 mNm |
| Type | Hybrid |
| Voltage - Rated | 24 VDC |
| Weight | 1.5 lb |
| Weight | 680.4 g |
23KM Series
| Part | Type | NEMA Frame Size | Step Angle | Features | Termination Style | Coil Type | Mounting Hole Spacing | Mounting Hole Spacing | Coil Resistance | Current Rating (Amps) | Voltage - Rated | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Weight | Weight | Steps per Revolution | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Rotor Inertia | Step Angle | Accuracy | Operating Temperature [Min] | Operating Temperature [Max] | Length - Shaft and Bearing | Length - Shaft and Bearing | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NMB TECHNOLOGIES | Hybrid | 23 | 1.8 ° | Round Shaft | Connector | Unipolar | 47.14 mm | 1.856 in | 3.3 Ohms | 1.5 A | 24 VDC | 760 mNm | 107.64 oz-in | 56.4 mm | 56.4 mm | 2.22 in | 2.22 in | 1.5 lb | 680.4 g | 200 | 0.25 in | 6.35 mm | 200 gcm˛ | ||||||||||
NMB TECHNOLOGIES | Hybrid | 23 | 1.8 ° | Round Shaft | Connector | Unipolar | 47.14 mm | 1.856 in | 2.3 Ohms | 1.5 A | 24 VDC | 420 mNm | 59.48 oz-in | 56.4 mm | 56.4 mm | 2.22 in | 2.22 in | 1.1 lbs | 499 g | 200 | 0.25 in | 6.35 mm | 120 gcm˛ | ||||||||||
NMB TECHNOLOGIES | Hybrid | 23 | Flatted Shaft | Unipolar | 47.14 mm | 1.856 in | 7 Ohms | 1 A | 24 VDC | 900 mNm | 127.47 oz-in | 56.4 mm | 56.4 mm | 2.22 in | 2.22 in | 1.5 lb | 680.4 g | 200 | 0.25 in | 6.35 mm | 200 gcm˛ | 1.8¯ | Ý5% | -10 °C | 50 °C | 0.984 in | 25 mm | ||||||
NMB TECHNOLOGIES | Hybrid | 23 | 1.8 ° | Round Shaft | Connector | Bipolar | 47.14 mm | 1.856 in | 2.3 Ohms | 2 A | 24 VDC | 1200 mNm | 169.96 oz-in | 56.4 mm | 56.4 mm | 2.22 in | 2.22 in | 2.3 lbs | 1 kg | 200 | 0.25 in | 6.35 mm | 360 gcm² | ||||||||||
NMB TECHNOLOGIES | Hybrid | 23 | 1.8 ° | Flatted Shaft | Wire Leads | Bipolar | 47.14 mm | 1.856 in | 2.4 Ohms | 24 VDC | 540 mNm | 76.5 oz-in | 56.4 mm | 56.4 mm | 2.22 in | 2.22 in | 1.1 lbs | 499 g | 200 | 0.315 in | 8 mm | 0.551 in | 14 mm | ||||||||||
NMB TECHNOLOGIES | Hybrid | 23 | 1.8 ° | Round Shaft | Connector | Unipolar | 47.14 mm | 1.856 in | 4.6 Ohms | 1.5 A | 24 VDC | 1200 mNm | 169.96 oz-in | 56.4 mm | 56.4 mm | 2.22 in | 2.22 in | 2.3 lbs | 1 kg | 200 | 0.25 in | 6.35 mm | 360 gcm² | ||||||||||
NMB TECHNOLOGIES | Hybrid Dual Shaft | 23 | 1.8 ° | Flatted Shaft | Unipolar | 47.14 mm | 1.856 in | 0.85 Ohms | 3 A | 24 VDC | 900 mNm | 127.47 oz-in | 56.4 mm | 56.4 mm | 2.22 in | 2.22 in | 1.5 lb | 680.4 g | 200 | 0.25 in | 6.35 mm | 200 gcm˛ | 0.984 in | 25 mm | -10 °C | 50 °C | |||||||
NMB TECHNOLOGIES | Hybrid | 23 | 1.8 ° | Flatted Shaft | Unipolar | 47.14 mm | 1.856 in | 8.6 Ohms | 1 A | 24 VDC | 1400 mNm | 198.28 oz-in | 56.4 mm | 56.4 mm | 2.22 in | 2.22 in | 2.3 lbs | 1 kg | 200 | 0.25 in | 6.35 mm | 360 gcm² | 0.984 in | 25 mm | -10 °C | 50 °C | |||||||
NMB TECHNOLOGIES | Hybrid | 23 | 1.8 ° | Round Shaft | Connector | Bipolar | 47.14 mm | 1.856 in | 2 Ohms | 2.1 A | 24 VDC | 1250 mNm | 177.04 oz-in | 56.4 mm | 56.4 mm | 2.22 in | 2.22 in | 2 lbs | 907.2 g | 200 | 0.25 in | 6.35 mm | 290 gcm² | ||||||||||
NMB TECHNOLOGIES | Hybrid | 23 | 1.8 ° | Flatted Shaft | Unipolar | 47.14 mm | 1.856 in | 5.8 Ohms | 900 mA | 24 VDC | 480 mNm | 67.98 oz-in | 56.4 mm | 56.4 mm | 2.22 in | 2.22 in | 1 lbs | 453.59 g | 200 | 0.25 in | 6.35 mm | 120 gcm˛ | 0.984 in | 25 mm | -10 °C | 50 °C |
