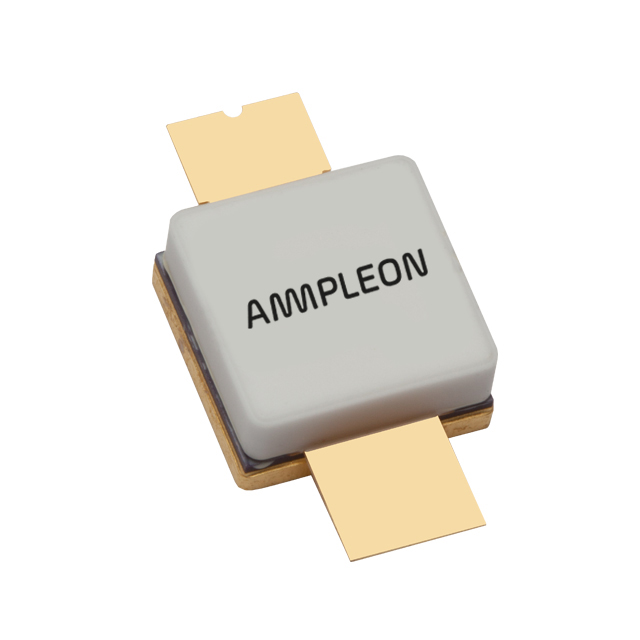

BLL8H0514LS-130U

Active

Ampleon USA Inc.

RF MOSFET LDMOS 50V CDFM2

Search across all available documentation for this part.

Active

Ampleon USA Inc.

RF MOSFET LDMOS 50V CDFM2

Technical Specifications

Parameters and characteristics for this part

Part	Power - Output	Mounting Type	Gain	Voltage - Test	Current - Test	Voltage - Rated	Frequency [Max]	Frequency [Min]	Supplier Device Package	Package / Case	Configuration	Frequency
Ampleon USA Inc. BLL8H1214L-250U	250 W	Chassis Mount	17 dBi	50 V	100 mA	100 V	1.4 GHz	1.2 GHz	SOT502A	SOT-502A
Ampleon USA Inc. BLL8H1214LS-500U	500 W	Surface Mount	17 dBi	50 V	150 mA	100 V	1.4 GHz	1.2 GHz	SOT539B	SOT-539B	Common Source Dual
Ampleon USA Inc. BLL8H1214L-500U	500 W	Chassis Mount	17 dBi	50 V	150 mA	100 V	1.4 GHz	1.2 GHz	SOT539A	SOT-539A	Common Source Dual
Ampleon USA Inc. BLL8H0514-25U	25 W	Chassis Mount	21 dB	50 V	50 mA	100 V			SOT467C	SOT-467C		1.2 GHz
Ampleon USA Inc. BLL8H0514LS-130U	130 W	Chassis Mount	17 dBi	50 V	50 mA	100 V	1.4 GHz	1.2 GHz	CDFM2	SOT-1135B
Ampleon USA Inc. BLL8H1214LS-250U	250 W	Chassis Mount	17 dBi	50 V	100 mA	100 V	1.4 GHz	1.2 GHz	SOT502B	SOT-502B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	60	$ 129.79

General part information

RF Mosfet 50 V 50 mA 1.2GHz ~ 1.4GHz 17dB 130W CDFM2
