C2412A.41.10

Active

Prysmian Group

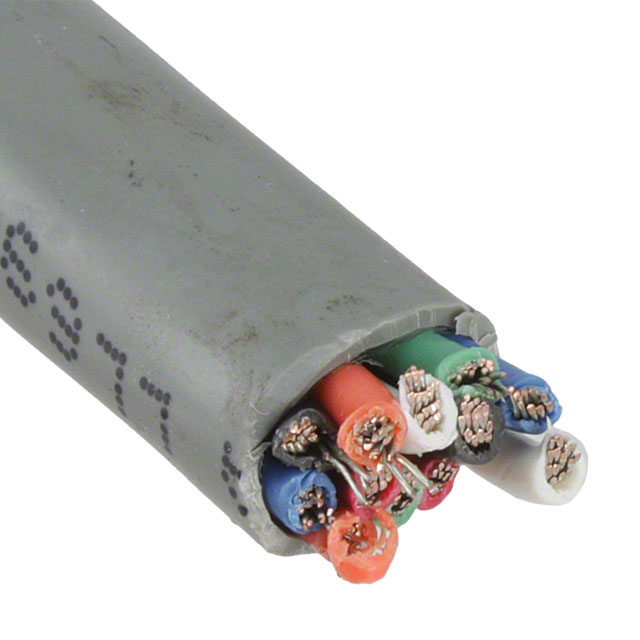

CABLE 12COND 18AWG GRAY

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 12COND 18AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	C2412A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	10.19 mm
Jacket (Insulation) Diameter [diameter]	0.401 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	18 AWG

Part	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Cable Type	Conductor Material	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Number of Conductors	Jacket Color	Voltage	Wire Gauge
Prysmian Group C2412A.41.10	1000 ft	304.8 m	16	30 AWG	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Copper Tinned	Poly-Vinyl Chloride (PVC)	-20 C	80 C	10.19 mm	0.401 in	Communication Control	12	Gray	300 V	18 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Conductor Multi-Conductor Cable Gray 18 AWG 1000.0' (304.8m)

Technical documentation and resources

No documents available
