VSP1000DSFR
ActiveHIGH SPEED BUFFER FOR CCD SENSOR
Deep-Dive with AI
Search across all available documentation for this part.
VSP1000DSFR
ActiveHIGH SPEED BUFFER FOR CCD SENSOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VSP1000DSFR |
|---|---|
| -3db Bandwidth | 210 MHz |
| Amplifier Type | Buffer |
| Current - Supply | 2 mA |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | 0 °C |

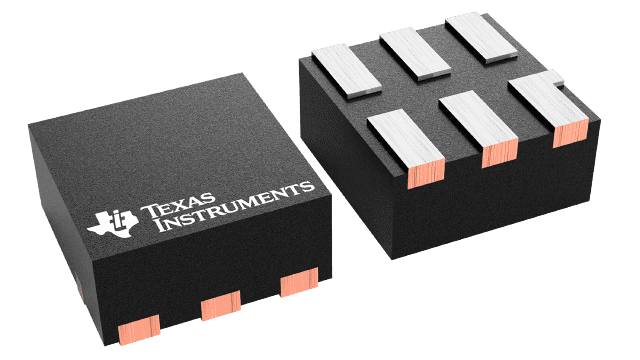

| Package / Case | 6-XFDFN |
| Supplier Device Package | 6-SON (1x1) |
| Voltage - Supply Span (Max) [Max] | 16 V |
| Voltage - Supply Span (Min) [Min] | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.61 | |
| Digi-Reel® | 1 | $ 1.61 | ||
| Tape & Reel (TR) | 5000 | $ 0.71 | ||
| 10000 | $ 0.68 | |||
| Texas Instruments | LARGE T&R | 1 | $ 1.39 | |
| 100 | $ 1.15 | |||
| 250 | $ 0.82 | |||
| 1000 | $ 0.62 | |||
Description
General part information
VSP1000 Series
The VSP1000 is a high-speed, low-noise, low-power, fast-settling, unity-gain buffer. It is specially designed for use between charge-coupled device (CCD) sensors and analog front-ends (AFEs). The device has an adjustable active load current that can load the CCD sensor output appropriately. The VSP1000 also features an adjustable output drive strength that can be set in accordance with the bandwidth requirements. At a 2-mA drive current, the device provides a bandwidth of 210 MHz, which allows for very low power operation with good performance. An ultra-small package of 1 mm × 1 mm and 0.35-mm height helps in saving printed circuit board (PCB) space and achieving a very low profile.
The VSP1000 is ideal for driving Texas Instruments AFEs for CCD sensors and, in general, any analog-to-digital converter (ADC) inputs. The adjustable load current allows for easy interfacing with a variety of CCD sensors from various manufacturers.
The VSP1000 is a high-speed, low-noise, low-power, fast-settling, unity-gain buffer. It is specially designed for use between charge-coupled device (CCD) sensors and analog front-ends (AFEs). The device has an adjustable active load current that can load the CCD sensor output appropriately. The VSP1000 also features an adjustable output drive strength that can be set in accordance with the bandwidth requirements. At a 2-mA drive current, the device provides a bandwidth of 210 MHz, which allows for very low power operation with good performance. An ultra-small package of 1 mm × 1 mm and 0.35-mm height helps in saving printed circuit board (PCB) space and achieving a very low profile.
