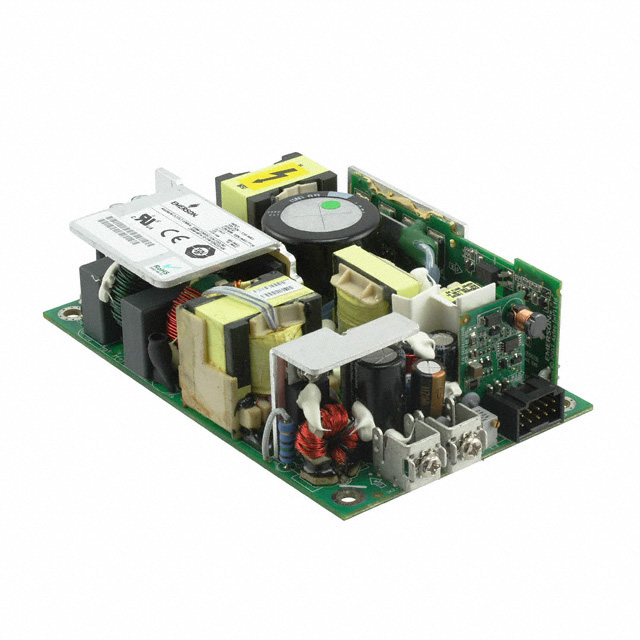

LPS204-M

Active

ARTESYN / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 15V 8.3A 250W 14-PIN

Search across all available documentation for this part.

Active

ARTESYN / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 15V 8.3A 250W 14-PIN

Technical Specifications

Parameters and characteristics for this part

Specification	LPS204-M

Applications	ITE (Commercial), Medical
Approval Agency	CE, CB
Current - Output 1	16.6 A
Efficiency	86 %
Features	Adjustable Output, DC Input Capable, PFC, Universal Input, Remote Sense, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	125 W
Power (Watts) [Max]	250 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	38.1 mm
Size / Dimension [z]	1.5 "
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	15 V

Part	Features	Voltage - Output 1	Efficiency	Approval Agency	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Minimum Load Required	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts) [Max]	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Type	Current - Output 1
ARTESYN / Advanced Energy LPS204-M	Adjustable Output DC Input Capable PFC Remote Sense Standby Output Universal Input	15 V	86 %	CB CE	Chassis Mount	90 VAC	264 VAC	ITE (Commercial) Medical		1	70 °C	0 °C	250 W	125 W	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	Open Frame	16.6 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 87.51

General part information

Open Frame AC DC Converters 1 Output 15V 90 ~ 264 VAC Input
