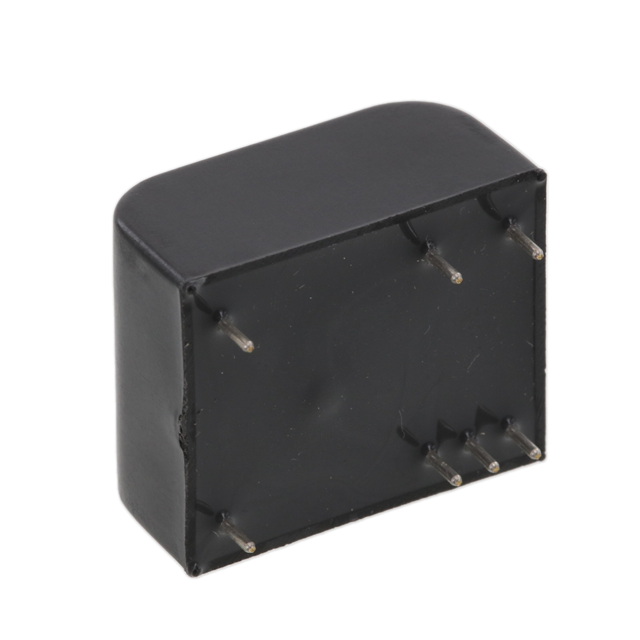

BPWX 1-14-33

Active

Cita Technologies, LLC.

AC/DC CONVERTER 14V 3.3V 556MW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BPWX 1-14-33

Active

Cita Technologies, LLC.

AC/DC CONVERTER 14V 3.3V 556MW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BPWX 1-14-33

Applications	ITE (Commercial)
Approval Agency	CB, cURus
Current - Output (Max)	71 mA, 23 mA
Efficiency	70 %
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	7-DIP Module
Power (Watts)	556 mW
Size / Dimension [x]	27.9 mm
Size / Dimension [x]	1.1 "
Size / Dimension [y]	0.92 "
Size / Dimension [y]	23.2 mm
Size / Dimension [z]	0.55 in
Size / Dimension [z]	14 mm
Type	Enclosed
Voltage - Input [Max]	308 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	14 V

BPWX 1 Series

Part	Power (Watts)	Approval Agency	Efficiency	Applications	Mounting Type	Voltage - Output 1	Package / Case	Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output (Max)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
Cita Technologies, LLC. BPWX 1-08-50	1.3 W	CB cURus	70 %	ITE (Commercial)	Through Hole	8 V	7-DIP Module	Enclosed	85 °C	-40 °C	2	90 VAC	308 VAC	83 mA 125 mA	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm
Cita Technologies, LLC. BPWX 1-14-50	747 mW	CB cURus	70 %	ITE (Commercial)	Through Hole	14 V	7-DIP Module	Enclosed	85 °C	-40 °C	2	90 VAC	308 VAC	28 mA 71 mA	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm
Cita Technologies, LLC. BPWX 1-08-33	837 mW	CB cURus	70 %	ITE (Commercial)	Through Hole	8 V	7-DIP Module	Enclosed	85 °C	-40 °C	2	90 VAC	308 VAC	53 mA 125 mA	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm
Cita Technologies, LLC. BPWX 1-14-33	556 mW	CB cURus	70 %	ITE (Commercial)	Through Hole	14 V	7-DIP Module	Enclosed	85 °C	-40 °C	2	90 VAC	308 VAC	23 mA 71 mA	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm
Cita Technologies, LLC. BPWX 1-14-00		CB cURus	70 %	ITE (Commercial)	Through Hole	14 V	7-DIP Module	Enclosed	85 °C	-40 °C	1	90 VAC	308 VAC		0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm
Cita Technologies, LLC. BPWX 1-12-00		CB cURus	70 %	ITE (Commercial)	Through Hole	12 V	7-DIP Module	Enclosed	85 °C	-40 °C	1	90 VAC	308 VAC		0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm
Cita Technologies, LLC. BPWX 1-08-00		CB cURus	70 %	ITE (Commercial)	Through Hole	8 V	7-DIP Module	Enclosed	85 °C	-40 °C	1	90 VAC	308 VAC		0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 9.00
		5	$ 8.87
		20	$ 8.74
		40	$ 7.97
		100	$ 7.71
		260	$ 7.45
		500	$ 7.20

Description

General part information

BPWX 1 Series

Enclosed AC DC Converters 2 Output 14V 23mA, 71mA 90 ~ 308 VAC Input
