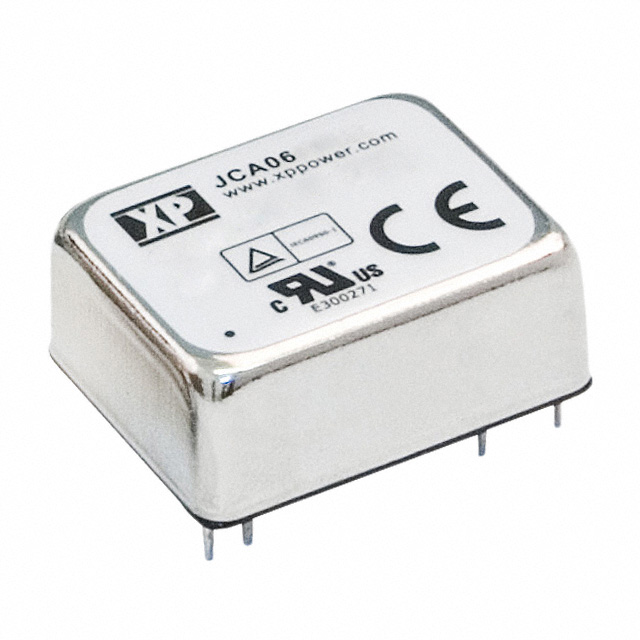

JCA0648D02
ActiveXP POWER
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 2:1, 6 W, 2 OUTPUT, 12 V, 250 MA
Deep-Dive with AI
Search across all available documentation for this part.
JCA0648D02
ActiveXP POWER
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 2:1, 6 W, 2 OUTPUT, 12 V, 250 MA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JCA0648D02 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 250 mA |
| Current - Output (Max) | 250 mA |
| Efficiency | 83 % |
| Features | SCP, UVLO, OVP, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-DIP Module, 8 Leads |
| Power (Watts) | 6 W |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [x] | 1 in |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [z] | 0.39 in |
| Size / Dimension [z] | 10 mm |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
JCA0648 Series
Isolated Module DC DC Converter 2 Output 12V -12V 250mA, 250mA 36V - 75V Input
