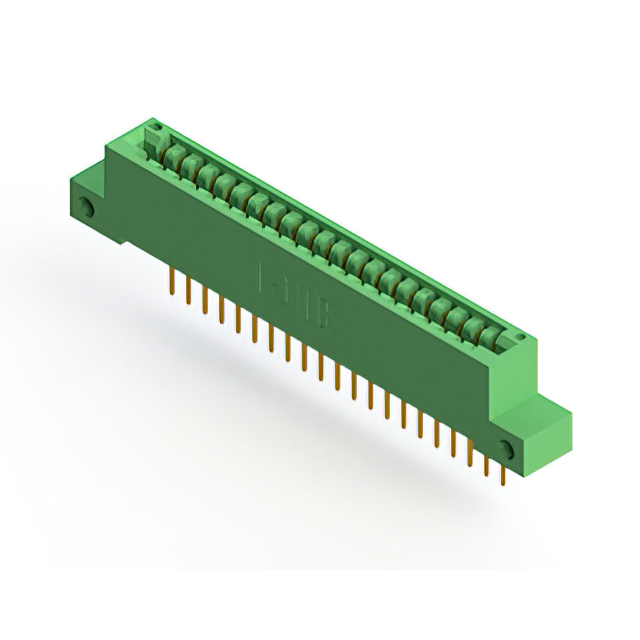

846-021-522-112
ActiveEDAC Inc.
CONN EDGE SGL FMALE 21POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
846-021-522-112
ActiveEDAC Inc.
CONN EDGE SGL FMALE 21POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 846-021-522-112 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 21 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
846-021 Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature | Flange Feature | Contact Material | Color | Termination Rows | Number of Rows | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Card Type | Termination | Material - Insulation | Contact Finish | Gender | Read Out | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 125 °C | -40 °C | Through Hole | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 in | Copper Alloy | Green | 1 | 1 | 21 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Wire Wrap | Diallyl Phthalate (DAP) | Gold | Female | Single | 0.125 in | 3.18 mm | |||
EDAC Inc. | 125 °C | -40 °C | Through Hole | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 1 | 1 | 21 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Solder | Diallyl Phthalate (DAP) | Gold | Female | Single | 0.125 in | 3.18 mm | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | ||
EDAC Inc. | 125 °C | -40 °C | Through Hole | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 1 | 1 | 21 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Wire Wrap | Diallyl Phthalate (DAP) | Gold | Female | Single | 0.125 in | 3.18 mm | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | ||
EDAC Inc. | 125 °C | -40 °C | Through Hole | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 1 | 1 | 21 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Wire Wrap | Diallyl Phthalate (DAP) | Gold | Female | Single | 0.125 in | 3.18 mm | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | ||
EDAC Inc. | 125 °C | -40 °C | Through Hole | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 1 | 1 | 21 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Solder | Diallyl Phthalate (DAP) | Gold | Female | Single | 0.125 in | 3.18 mm | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | ||
EDAC Inc. | 125 °C | -40 °C | Through Hole | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 1 | 1 | 21 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Solder | Diallyl Phthalate (DAP) | Gold | Female | Single | 0.125 in | 3.18 mm | Flush Mount M3 Threaded Insert Top Opening | ||||
EDAC Inc. | 125 °C | -40 °C | Through Hole | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 1 | 1 | 21 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Solder | Diallyl Phthalate (DAP) | Gold | Female | Single | 0.125 in | 3.18 mm | Flush Mount M3 Threaded Insert Top Opening | ||||
EDAC Inc. | 125 °C | -40 °C | Through Hole | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 1 | 1 | 21 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Solder | Diallyl Phthalate (DAP) | Gold | Female | Single | 0.125 in | 3.18 mm | M3 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | 125 °C | -40 °C | Through Hole | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 1 | 1 | 21 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Solder | Diallyl Phthalate (DAP) | Gold | Female | Single | 0.125 in | 3.18 mm | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | ||
EDAC Inc. | 125 °C | -40 °C | Through Hole | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 1 | 1 | 21 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Wire Wrap | Diallyl Phthalate (DAP) | Gold | Female | Single | 0.125 in | 3.18 mm | 4-40 Threaded Insert Top Mount Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
846-021 Series
21 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
