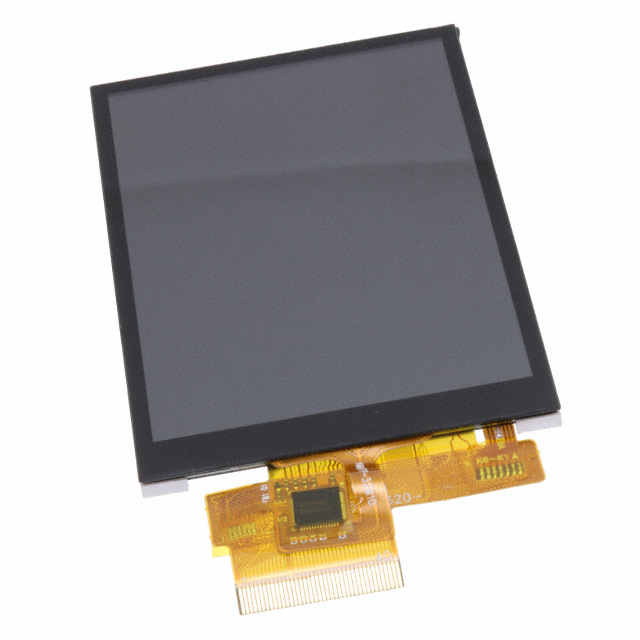

4DLCD-35480320-CTP

Obsolete

4D LCD Pty Ltd

IPS LCD MODULE 3.5" 320X480 PXL

Search across all available documentation for this part.

Obsolete

4D LCD Pty Ltd

IPS LCD MODULE 3.5" 320X480 PXL

Technical Specifications

Parameters and characteristics for this part

Part	Viewing Area [y]	Viewing Area [x]	Dot Pixels [y]	Dot Pixels [x]	Diagonal Screen Size	Diagonal Screen Size	Display Mode	Dot Pitch [x]	Dot Pitch [y]	Backlight	Touchscreen	Display Type	Graphics Color	Interface	Interface	Viewing Area [z]	Diagonal Screen Size [custom]	Diagonal Screen Size [custom]	Viewing Area [custom]	Viewing Area [custom]
4D LCD Pty Ltd 4DLCD-43480272	53.86 mm	95.04 mm	272	480	109.22 mm	4.3 in	Transmissive	0.2 mm	0.2 mm	LED	Non-Touch	TFT - Color	Blue Green Red	Parallel	24 Bit
4D LCD Pty Ltd 4DLCD-90800480-RTP	198 mm		480	800	228.6 mm	9 in	Transmissive	0.09 mm	0.23 mm	LED	Resistive	TFT - Color	Blue Green Red	Parallel	24 Bit	111.7 mm
4D LCD Pty Ltd 4DLCD-35480320-CTP-CLB	73.44 mm	48.96 mm	480	320 pixels			Transmissive	0.2 mm	0.2 mm	LED	Capacitive	TFT - Color	Blue Green Red	MCU SPI
4D LCD Pty Ltd 4DLCD-90800480-CTP	198 mm		480	800	228.6 mm	9 in	Transmissive	0.09 mm	0.23 mm	LED	Capacitive	TFT - Color	Blue Green Red	Parallel	24 Bit	111.7 mm
4D LCD Pty Ltd 4DLCD-70800480-CTP	85.63 mm	153.84 mm	480	800	177.8 mm	7 in	Transmissive	0.19 mm	0.19 mm	LED	Capacitive	TFT - Color	Blue Green Red	Parallel	24 Bit
4D LCD Pty Ltd 4DLCD-35480320-CTP	73.44 mm	48.96 mm	480	320 pixels			Transmissive	0.2 mm	0.2 mm	LED	Capacitive	TFT - Color	Blue Green Red	MCU SPI
4D LCD Pty Ltd 4DLCD-50800480-CTP-CLB	64.8 mm	108 mm	480	800			Transmissive			LED	Capacitive	TFT - Color	Blue Green Red	Parallel	24 Bit		127 mm	5 in
4D LCD Pty Ltd 4DLCD-28320240-RTP-IPS			320	240 pixels	71.12 mm	2.8 in	Transmissive	0.18 mm	0.18 mm	LED	Resistive	TFT - Color	Blue Green Red	MCU SPI					43.2 mm	57.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 46.22

General part information

Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color MCU, SPI 3.5" (88.90mm) 320 x 480

Technical documentation and resources

No documents available
