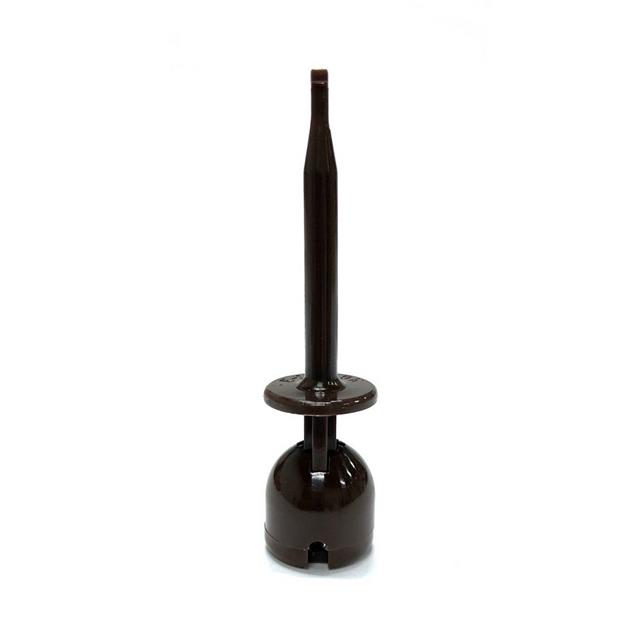

X100WBRN

Active

E-Z-Hook

MINI-HOOK BROWN SOLDER 0.093"

Search across all available documentation for this part.

Active

E-Z-Hook

MINI-HOOK BROWN SOLDER 0.093"

Technical Specifications

Parameters and characteristics for this part

Part	Hook, Pincer Opening [z]	Hook, Pincer Opening [z]	Features	Color	Length - Barrel [x]	Length - Barrel [x]	Temperature Range	Temperature Range	Hook Type	Length	Length	Quantity
E-Z-Hook X100WGRN	4.57 mm	0.18 in	Push Button Style	Green	1.42 "	36.07 mm	93 °C	200 °F	Hook	2.25 in	57.15 mm	1 Box
E-Z-Hook X100WBLK	4.57 mm	0.18 in	Push Button Style	Black	1.42 "	36.07 mm	93 °C	200 °F	Hook	2.25 in	57.15 mm	1 Box
E-Z-Hook X100W-NMBLK	4.57 mm	0.18 in	Non-Magnetic Push Button Style	Black	1.42 "	36.07 mm	93 °C	200 °F	Hook	2.25 in	57.15 mm	1 Box
E-Z-Hook X100WORN	4.57 mm	0.18 in	Push Button Style		1.42 "	36.07 mm	93 °C	200 °F	Hook	2.25 in	57.15 mm	1 Box
E-Z-Hook X100W2ABLK	4.57 mm	0.18 in	Push Button Style	Black	1.42 "	36.07 mm	93 °C	200 °F	Hook	2.25 in	57.15 mm	1 Box
E-Z-Hook X100WBRN	4.57 mm	0.18 in	Push Button Style	Brown	1.42 "	36.07 mm	93 °C	200 °F	Hook	2.25 in	57.15 mm	1 Box
E-Z-Hook X100WWTE	4.57 mm	0.18 in	Push Button Style	White	1.42 "	36.07 mm	93 °C	200 °F	Hook	2.25 in	57.15 mm	1 Box
E-Z-Hook X100WYEL	4.57 mm	0.18 in	Push Button Style	Yellow	1.42 "	36.07 mm	93 °C	200 °F	Hook	2.25 in	57.15 mm	1 Box
E-Z-Hook X100WGRY	4.57 mm	0.18 in	Push Button Style	Gray	1.42 "	36.07 mm	93 °C	200 °F	Hook	2.25 in	57.15 mm	1 Box
E-Z-Hook X100WXRED	4.57 mm	0.18 in	Push Button Style	Red	1.42 "	36.07 mm			Hook	2.25 in	57.15 mm	1 Box

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Brown Mini Solder, 0.090" (2.29mm) Wire Opening Features Push Button Style
