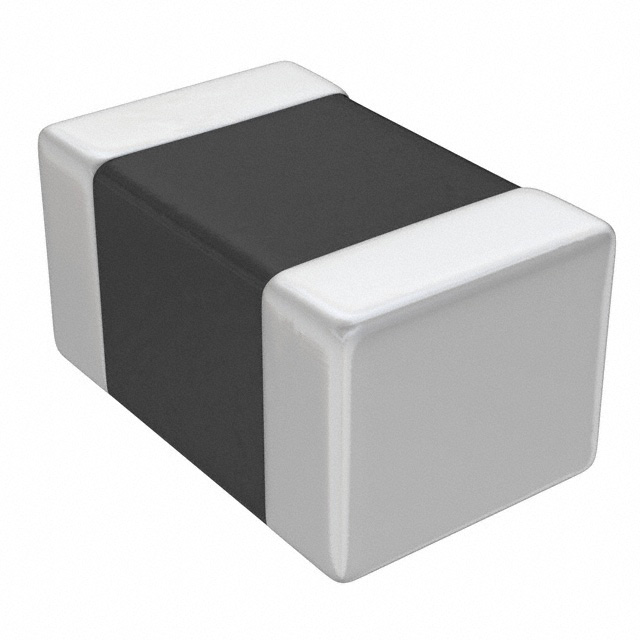

Z0805C601ASMST

Obsolete

KEMET

FERRITE BEAD 600 OHM 0805 1LN

Search across all available documentation for this part.

Obsolete

KEMET

FERRITE BEAD 600 OHM 0805 1LN

Technical Specifications

Parameters and characteristics for this part

Part	DC Resistance (DCR) (Max)	Impedance @ Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Filter Type	Height (Max)	Height (Max) [Max]	Current Rating (Max) [Max]	Mounting Type	Package / Case	DC Resistance (DCR) (Max) [Max]	Number of Lines
KEMET Z0805C330APMST	20 mOhm	33 Ohms	85 °C	-55 °C	2 mm	0.079 in	0.049 in	1.25 mm	Power Line	1.05 mm	0.041 in	4 A	Surface Mount	0805
KEMET Z0805C121BPWZT		120 Ohms	125 °C	-40 °C	2 mm	0.079 in	0.049 in	1.25 mm	Power Line	1.05 mm	0.041 in	2.5 A	Surface Mount	0805	32 mOhm	1
KEMET Z0805C601BSMST		600 Ohms	125 °C	-55 °C	2 mm	0.079 in	0.049 in	1.25 mm		1.05 mm	0.041 in	500 mA	Surface Mount	0805	250 mOhm	1
KEMET Z0805C241CSMST		240 Ohms	125 °C	-55 °C	2 mm	0.079 in	0.049 in	1.25 mm		1.05 mm	0.041 in	300 mA	Surface Mount	0805	350 mOhm	1
KEMET Z0805C750ASMST			125 °C	-55 °C	2 mm	0.079 in	0.049 in	1.25 mm		1.05 mm	0.041 in	1 A	Surface Mount	0805	100 mOhm	1
KEMET Z0805C601ASMST		600 Ohms	125 °C	-55 °C	2 mm	0.079 in	0.049 in	1.25 mm		1.05 mm	0.041 in	500 mA	Surface Mount	0805	300 mOhm	1
KEMET Z0805C221BPWZT		220 Ohms	125 °C	-40 °C	2 mm	0.079 in	0.049 in	1.25 mm	Power Line	1.05 mm	0.041 in	2 A	Surface Mount	0805	60 mOhm	1
KEMET Z0805C241ASMST		240 Ohms	125 °C	-55 °C	2 mm	0.079 in	0.049 in	1.25 mm		1.05 mm	0.041 in	600 mA	Surface Mount	0805	200 mOhm	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

600 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 0805 (2012 Metric) 500mA 300mOhm
