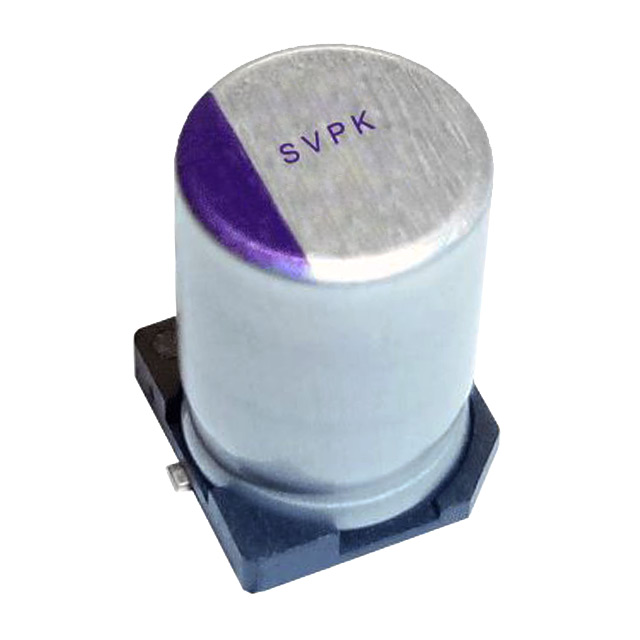

50SVPK33M

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 33UF 20% 50V SMD

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 33UF 20% 50V SMD

Technical Specifications

Parameters and characteristics for this part

Specification	50SVPK33M

Applications	General Purpose
Capacitance	33 ÁF
ESR (Equivalent Series Resistance)	35 mOhms
Height - Seated (Max) [Max]	7 mm
Height - Seated (Max) [Max]	0.276 "
Lifetime @ Temp.	1000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can - SMD
Ripple Current @ High Frequency	850 mA
Ripple Current @ Low Frequency	42.5 mA
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Surface Mount Land Size [x]	0.327 "
Surface Mount Land Size [x]	8.3 mm
Surface Mount Land Size [y]	8.3 mm
Surface Mount Land Size [y]	0.327 in
Tolerance	20 %
Type	Polymer
Voltage - Rated	50 VDC

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Capacitance	Type	Mounting Type	ESR (Equivalent Series Resistance)	Ripple Current @ Low Frequency	Lifetime @ Temp.	Tolerance	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Ripple Current @ High Frequency	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales 50SVPK10M	0.236 in	6 mm	50 VDC	10 µF	Polymer	Surface Mount	80 mOhm	27.5 mA	1000 Hrs	20 %	5.3 mm	0.209 in	5.3 mm	0.209 in	-55 °C	125 °C	5 mm	0.197 "	General Purpose	550 mA	Radial Can - SMD
Panasonic Industrial Automation Sales 50SVPK22M	0.236 in	6 mm	50 VDC	22 µF	Polymer	Surface Mount	35 mOhms	41 mA	1000 Hrs	20 %	6.6 mm	0.26 in	6.6 mm	0.26 in	-55 °C	125 °C	6.3 mm	0.248 in	General Purpose	820 mA	Radial Can - SMD
Panasonic Industrial Automation Sales 50SVPK68M			50 VDC	68 µF	Polymer	Surface Mount	25 mOhm	60 mA	1000 Hrs	20 %	8.3 mm	0.327 "	8.3 mm	0.327 in	-55 °C	125 °C	8 mm	0.315 "	General Purpose	1.2 A	Radial Can - SMD	12 mm	0.472 "
Panasonic Industrial Automation Sales 50SVPK33M	0.276 "	7 mm	50 VDC	33 ÁF	Polymer	Surface Mount	35 mOhms	42.5 mA	1000 Hrs	20 %	8.3 mm	0.327 "	8.3 mm	0.327 in	-55 °C	125 °C	8 mm	0.315 "	General Purpose	850 mA	Radial Can - SMD

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

33 µF 50 V Aluminum - Polymer Capacitors Radial, Can - SMD 35mOhm 1000 Hrs @ 125°C
