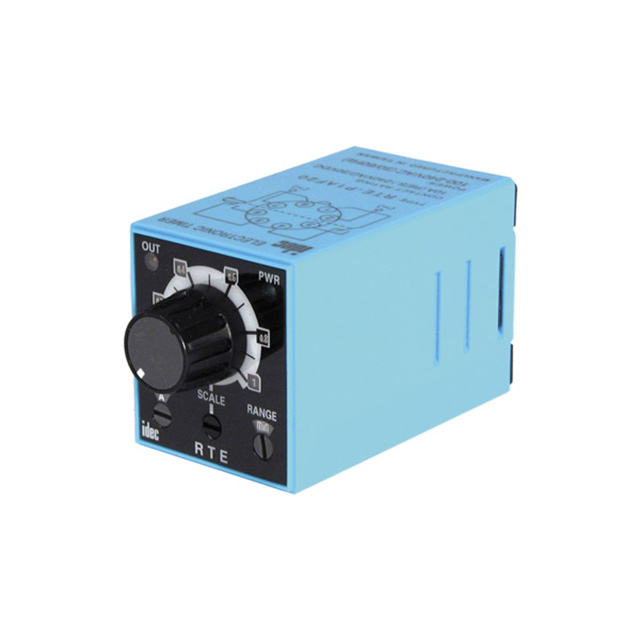

RTE-B1AD24
ActiveANALOG TIMER, MULTI MODE, CMOS, RTE SERIES, MULTIFUNCTION, 20 RANGES, 0.1 S, 600 H
Deep-Dive with AI
Search across all available documentation for this part.
RTE-B1AD24
ActiveANALOG TIMER, MULTI MODE, CMOS, RTE SERIES, MULTIFUNCTION, 20 RANGES, 0.1 S, 600 H
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RTE-B1AD24 |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating @ Voltage | 240 VAC, 30 VDC, 10 A |
| Delay Time [Max] | 600 Hrs |
| Delay Time [Min] | 0.1 Sec |
| Function | Programmable (Multi-Function) |
| Mounting Type | Socketable |
| Relay Type | Mechanical Relay |
| Termination Style | Plug In |
| Timing Adjustment Method | Hand Dial |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply | 24 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RTE-B1AD Series
The RTE-B1AD24 is a Multifunction Analog Timer with delayed double-pole double-throw contact. It features ON and timing OUT LED indicators, 20 time ranges and 10 timing functions and solid state CMOS circuit operation system, blade plug-in terminals. It is suitable for use with the internal circuits.
