LDN240-12
ObsoleteEOS Power India Private Ltd
AC/DC POWER SUPPLY SINGLE-OUT 12V 16A 240W 9-PIN
Deep-Dive with AI
Search across all available documentation for this part.
LDN240-12
ObsoleteEOS Power India Private Ltd
AC/DC POWER SUPPLY SINGLE-OUT 12V 16A 240W 9-PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LDN240-12 |
|---|---|
| AC Voltage - Input [Max] | 264 VAC, 132 VAC |
| AC Voltage - Input [Min] | 90 VAC, 187 VAC |
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 16 A |
| Efficiency | 84 % |
| Features | Adjustable Output, IP20 |
| Input Type | AC |
| Number of Outputs | 1 |
| Power (Watts) | 240 W |
| Size / Dimension [x] | 117 mm |
| Size / Dimension [x] | 4.61 " |
| Size / Dimension [y] | 2.48 in |
| Size / Dimension [y] | 63 mm |
| Size / Dimension [z] | 5.51 " |
| Size / Dimension [z] | 140 mm |
| Voltage - Isolation | 4.2 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

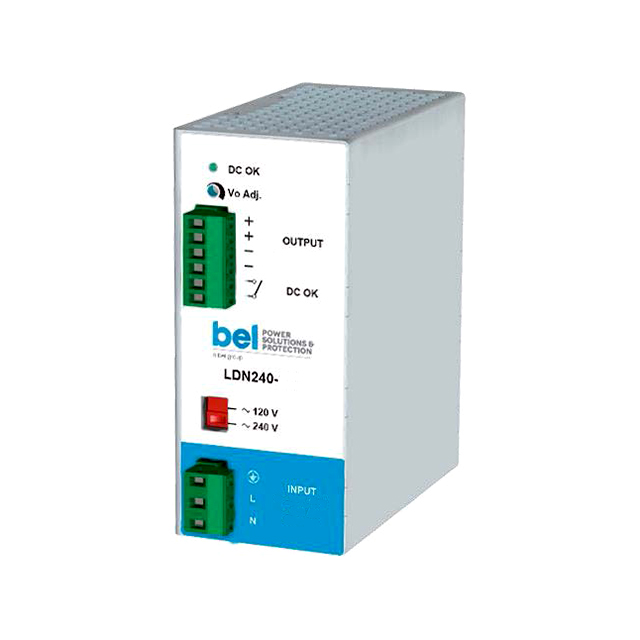

LDN240 Series
AC/DC POWER SUPPLY SINGLE-OUT 12V 16A 240W 9-PIN
Documents
Technical documentation and resources
No documents available
