SC813ULTRT

Obsolete

Semtech Corporation

IC BATT CHG LI-ION 1CELL 8MLPD

Search across all available documentation for this part.

Obsolete

Semtech Corporation

IC BATT CHG LI-ION 1CELL 8MLPD

Technical Specifications

Parameters and characteristics for this part

Specification	SC813ULTRT

Battery Chemistry	Lithium Ion
Battery Pack Voltage	4.2 V
Charge Current - Max [Max]	1 A
Current - Charging	Constant - Programmable
Fault Protection	Over Temperature, Over Voltage, Short Circuit, Over Current
Interface	USB
Mounting Type	Surface Mount
Number of Cells	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

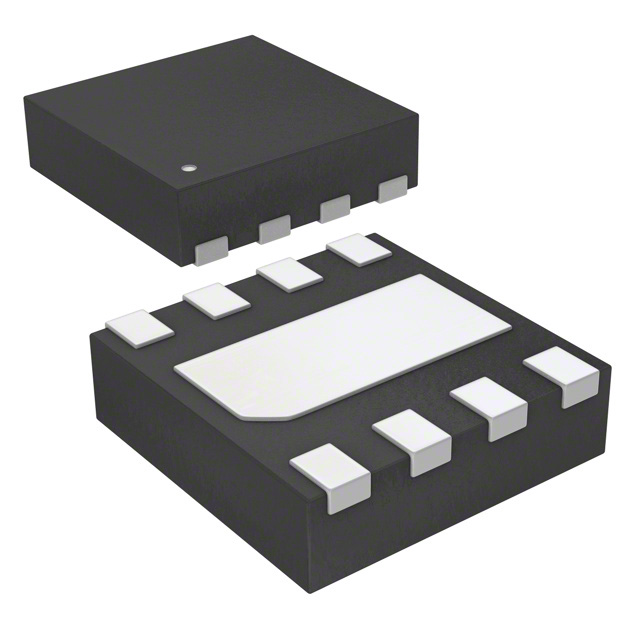

Package / Case	8-UFDFN Exposed Pad
Programmable Features	Current
Supplier Device Package	8-MLPD-UT (2x2)
Voltage - Supply (Max) [Max]	5.6 V

Part	Package / Case	Supplier Device Package	Interface	Number of Cells	Voltage - Supply (Max) [Max]	Current - Charging	Mounting Type	Battery Pack Voltage	Battery Chemistry	Operating Temperature [Max]	Operating Temperature [Min]	Charge Current - Max [Max]	Fault Protection	Programmable Features
Semtech Corporation SC813ULTRT	8-UFDFN Exposed Pad	8-MLPD-UT (2x2)	USB	1	5.6 V	Constant - Programmable	Surface Mount	4.2 V	Lithium Ion	85 °C	-40 °C	1 A	Over Current Over Temperature Over Voltage Short Circuit	Current

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Charger IC Lithium Ion 8-MLPD-UT (2x2)
