Technical Specifications
Parameters and characteristics for this part

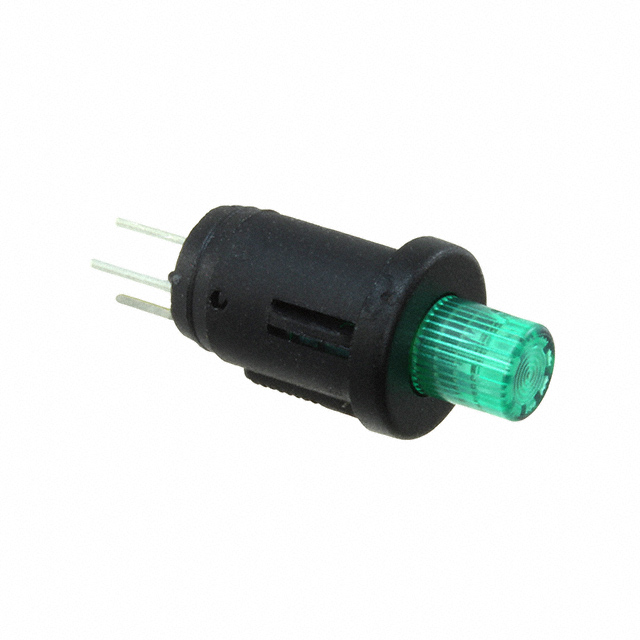

| Specification | 0041.9156.5127 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Green |
| Current Rating (Amps) | 200 mA |
| Electrical Life | 10000 Cycles |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 2 VDC |
| Ingress Protection | IP40 |
| Mechanical Life | 10000 Steps |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 8 mm |
| Switch Function | Off-On |
| Termination Style | PC Pin |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 60 V |
| Voltage Rating - DC | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
0041.9156 Series
Pushbutton Switches LDS N.O. 1P BEL./ILL
