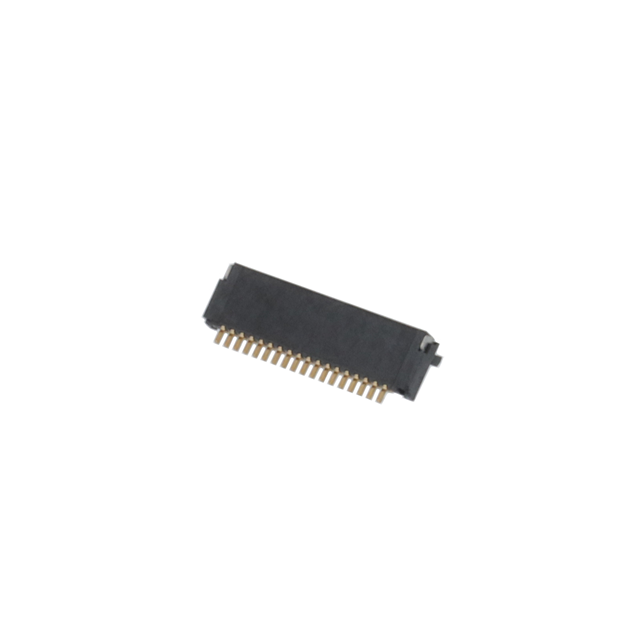

TF13BSA-18S-0.4SH(800)

Active

Hirose Electric USA, Inc.

CONN FPC BOTTOM 18POS 0.4MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TF13BSA-18S-0.4SH(800)

Active

Hirose Electric USA, Inc.

CONN FPC BOTTOM 18POS 0.4MM R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TF13BSA-18S-0.4SH(800)

Actuator Color	Black
Actuator Material	Liquid Crystal Polymer (LCP)
Cable End Type	Notched
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Finish Thickness	1.97 Áin
Contact Finish Thickness	0.05 Ám
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.2 mm
Flat Flex Type	FPC
Height Above Board	0.88 mm
Height Above Board	0.035 "
Housing Color	Black
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock, Backlock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	18
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.016 in
Pitch [x]	0.4 mm
Termination	Solder
Voltage Rating	50 V

TF13 Series

Part	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Pitch [x]	Pitch [x]	Current Rating (Amps)	Cable End Type	Housing Color	Mating Cycles	Locking Feature	Flat Flex Type	Height Above Board	Height Above Board	Housing Material	Voltage Rating	Termination	Features	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Actuator Material	Mounting Type	Actuator Color	Material Flammability Rating	Connector/Contact Type	FFC, FCB Thickness	Number of Positions
Hirose Electric USA, Inc. TF13BA-6S-0.4SH(800)	Phosphor Bronze	1.97 Áin	0.05 Ám	6	0.016 in	0.4 mm	0.5 A	Notched	Black	20	Backlock Flip Lock	FPC	0.88 mm	0.035 "	Liquid Crystal Polymer (LCP)	50 V	Solder	Solder Retention Zero Insertion Force (ZIF)	85 °C	-55 °C	Gold	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Black	UL94 V-0	Contacts Bottom	0.2 mm
Hirose Electric USA, Inc. TF13BSA-14S-0.4SH(800)	Phosphor Bronze	1.97 Áin	0.05 Ám	14	0.016 in	0.4 mm	0.5 A	Notched	Black	20	Backlock Flip Lock	FPC	0.88 mm	0.035 "	Liquid Crystal Polymer (LCP)	50 V	Solder	Solder Retention Zero Insertion Force (ZIF)	85 °C	-55 °C	Gold	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Black	UL94 V-0	Contacts Bottom	0.2 mm
Hirose Electric USA, Inc. TF13-10S-0.4SH(800)
Hirose Electric USA, Inc. TF13BSA-18S-0.4SH(800)	Phosphor Bronze	1.97 Áin	0.05 Ám	18	0.016 in	0.4 mm	0.5 A	Notched	Black	20	Backlock Flip Lock	FPC	0.88 mm	0.035 "	Liquid Crystal Polymer (LCP)	50 V	Solder	Solder Retention Zero Insertion Force (ZIF)	85 °C	-55 °C	Gold	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Black	UL94 V-0	Contacts Bottom	0.2 mm
Hirose Electric USA, Inc. TF13BA-9S-0.4SH(800)	Phosphor Bronze	1.97 Áin	0.05 Ám	9	0.016 in	0.4 mm	0.5 A	Notched	Black	20	Backlock Flip Lock	FPC	0.88 mm	0.035 "	Liquid Crystal Polymer (LCP)	50 V	Solder	Solder Retention Zero Insertion Force (ZIF)	85 °C	-55 °C	Gold	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Black	UL94 V-0	Contacts Bottom	0.2 mm
Hirose Electric USA, Inc. TF13BSA-16S-0.4SH(800)	Phosphor Bronze	1.97 Áin	0.05 Ám		0.016 in	0.4 mm	0.5 A	Notched	Black	20	Backlock Flip Lock	FPC	0.88 mm	0.035 "	Liquid Crystal Polymer (LCP)	50 V	Solder	Solder Retention Zero Insertion Force (ZIF)	85 °C	-55 °C	Gold	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Black	UL94 V-0	Contacts Bottom	0.2 mm	16
Hirose Electric USA, Inc. TF13BSA-20S-0.4SH(800)	Phosphor Bronze	1.97 Áin	0.05 Ám	20	0.016 in	0.4 mm	0.5 A	Notched	Black	20	Backlock Flip Lock	FPC	0.88 mm	0.035 "	Liquid Crystal Polymer (LCP)	50 V	Solder	Solder Retention Zero Insertion Force (ZIF)	85 °C	-55 °C	Gold	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Black	UL94 V-0	Contacts Bottom	0.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.69
		10	$ 1.47
		25	$ 1.41
		50	$ 1.38
		100	$ 1.31
		250	$ 1.19
		500	$ 1.10
		1000	$ 0.94
		2500	$ 0.88
	Digi-Reel®	1	$ 1.69
		10	$ 1.47
		25	$ 1.41
		50	$ 1.38
		100	$ 1.31
		250	$ 1.19
		500	$ 1.10
		1000	$ 0.94
		2500	$ 0.88
	Tape & Reel (TR)	5000	$ 0.78

Description

General part information

TF13 Series

18 Position FPC Connector Contacts, Bottom 0.016" (0.40mm) Surface Mount, Right Angle
