BWC-4MNFN6

Active

BANNER ENGINEERING

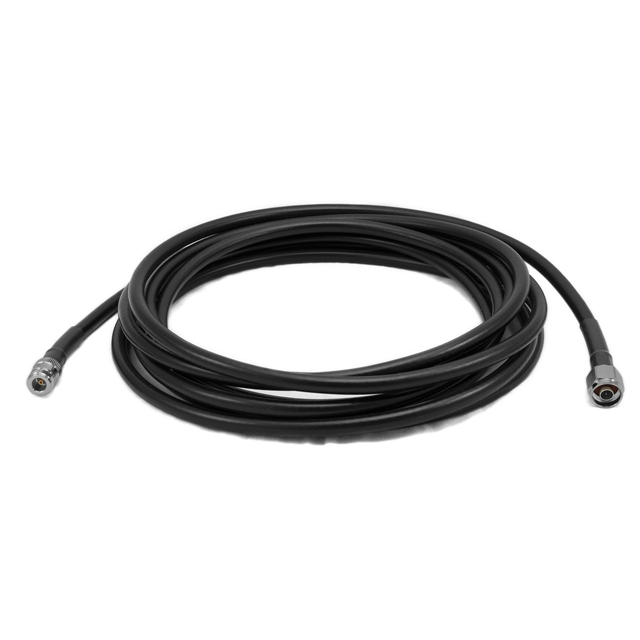

CBL ASSY NTYPE JACK TO PLUG 6M

Search across all available documentation for this part.

Active

BANNER ENGINEERING

CBL ASSY NTYPE JACK TO PLUG 6M

Technical Specifications

Parameters and characteristics for this part

Specification	BWC-4MNFN6

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	LMR 400
Color	Black
Length	19.7 ft
Length	236.2 in
Length	6 m
Style	N-Type to N-Type

Part	Cable Impedance	Cable Type	1st Connector Mounting Feature	1st Connector	Color	1st Contact Gender	Style	2nd Connector Mounting Type	1st Connector Mounting Type	2nd Contact Gender	2nd Connector	Length	Length	Length
BANNER ENGINEERING BWC-4MNFN6	50 Ohms	LMR 400	Bulkhead - Front Side Nut	N-Type Jack	Black	Female	N-Type to N-Type	Free Hanging (In-Line)	Panel Mount	Male	N-Type Plug	19.7 ft	236.2 in	6 m
BANNER ENGINEERING BWC-4MNFN30	50 Ohms	LMR 400	Bulkhead - Front Side Nut	N-Type Jack	Black	Female	N-Type to N-Type	Free Hanging (In-Line)	Panel Mount	Male	N-Type Plug	98.4 ft	1181.1 in	30 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 144.00
Newark	Each	1	$ 144.00

General part information

Cable Assembly Coaxial N-Type to N-Type 236.2" (6.0m) 19.7'
