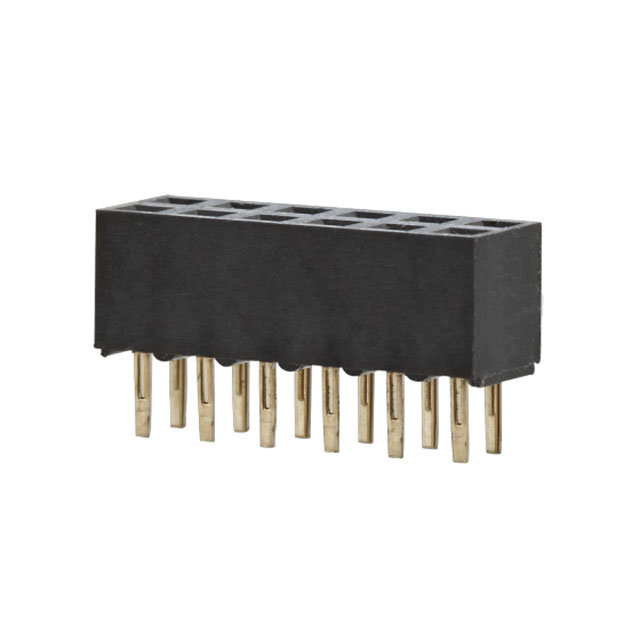

FR20C02VBDN

Active

METZ CONNECT USA Inc.

HEADERS AND EDGE TYPE CONNECTOR,

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

HEADERS AND EDGE TYPE CONNECTOR,

Technical Specifications

Parameters and characteristics for this part

Specification	FR20C02VBDN

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Post	0.091 in
Contact Length - Post	2.3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.3 mm
Insulation Height	0.169 "
Insulation Material	Polyethylene Terephthalate (PET), Polyester
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder

Part	Contact Finish - Mating	Contact Type	Insulation Material	Fastening Type	Mounting Type	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Number of Positions Loaded	Number of Positions	Contact Length - Post	Contact Length - Post	Insulation Color	Contact Finish Thickness - Mating	Termination	Contact Shape	Number of Rows
METZ CONNECT USA Inc. FR20C02VBDN	Gold	Female Socket	Polyester Polyethylene Terephthalate (PET)	Push-Pull	Through Hole	Receptacle	0.079 in	2 mm	Copper Alloy	-40 °C	105 ░C	4.3 mm	0.169 "	All	2	0.091 in	2.3 mm	Black	Flash	Solder	Square	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	3000	$ 0.30

General part information

2 Position Receptacle Connector Through Hole Gold
