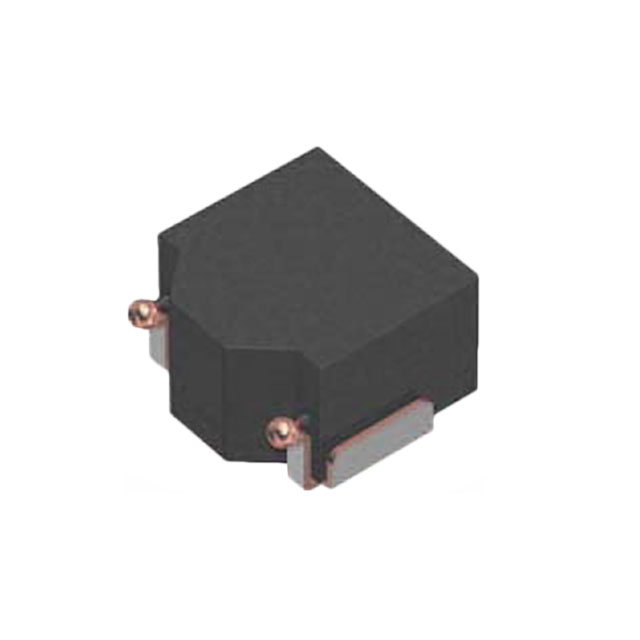

SPM3012T-1R0M-CA02

Active

EPCOS - TDK Electronics

FIXED IND 1UH 3.4A 0.0594OHM SMD

Search across all available documentation for this part.

Active

EPCOS - TDK Electronics

FIXED IND 1UH 3.4A 0.0594OHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Tolerance	Shielding	Package / Case	Inductance Frequency - Test	Current Rating (Amps)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Material - Core	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current - Saturation (Isat)	Type	Inductance	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR) [Max]	DC Resistance (DCR)
EPCOS - TDK Electronics SPM3012T-4R7M-CA02	20 %	Shielded	Nonstandard	100 kHz	1.7 A	1.2 mm	0.047 in	Metal	Surface Mount	3 mm	3.2 mm	0.126 in	0.118 in	2.3 A	Drum Core Wirewound	4.7 ÁH	-40 °C	105 ░C	266.3 mOhm
EPCOS - TDK Electronics SPM3012T-2R2M-CA02	20 %	Shielded	Nonstandard	100 kHz	2.6 A	1.2 mm	0.047 in	Metal	Surface Mount	3 mm	3.2 mm	0.126 in	0.118 in	3.7 A	Drum Core Wirewound	2.2 µH	-40 °C	105 ░C		102.3 mOhm
EPCOS - TDK Electronics SPM3012T-1R0M-CA02	20 %	Shielded	Nonstandard	100 kHz	3.4 A	1.2 mm	0.047 in	Metal	Surface Mount	3 mm	3.2 mm	0.126 in	0.118 in	5 A	Drum Core Wirewound	1 µH	-40 °C	105 ░C	59.4 mOhm
EPCOS - TDK Electronics SPM3012T-R47M-CA02	20 %	Shielded	Nonstandard	100 kHz	4.5 A	1.2 mm	0.047 in	Metal	Surface Mount	3 mm	3.2 mm	0.126 in	0.118 in		Drum Core Wirewound	470 nH	-40 °C	105 ░C	34.8 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 0.77
