ASP-105885-01
ActiveSamtec Inc.

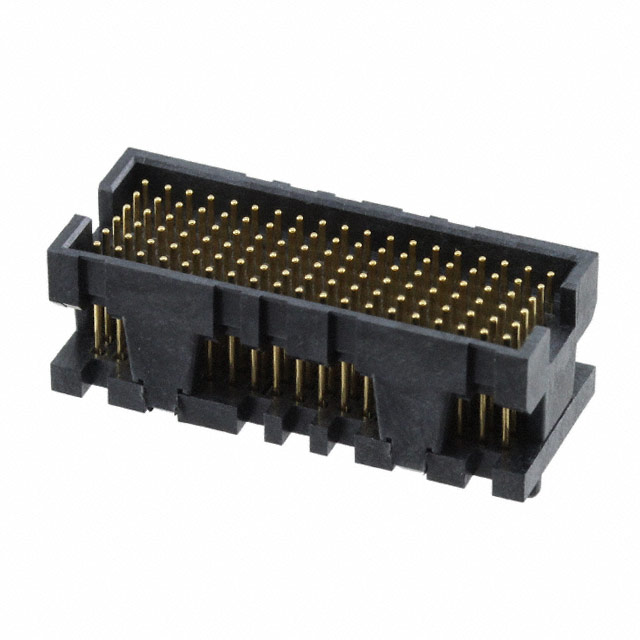

MEZZANINE CONNECTOR, ARRAY, MALE, 1.27 MM, 6 ROWS, 114 CONTACTS, SURFACE MOUNT, BRASS ALLOY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASP-105885-01
ActiveSamtec Inc.
MEZZANINE CONNECTOR, ARRAY, MALE, 1.27 MM, 6 ROWS, 114 CONTACTS, SURFACE MOUNT, BRASS ALLOY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASP-105885-01 |
|---|---|
| Connector Type | Male Pins, Array |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Board Guide |
| Height Above Board [z] | 9.07 mm |
| Height Above Board [z] | 0.357 in |
| Mounting Type | Surface Mount |
| Number of Positions | 114 |
| Number of Rows | 6 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
105885-01 Series
114 Position Connector Array, Male Pins Surface Mount Gold
