7029-1513-005
ActiveRadiall USA, Inc.
SSMC M STR EDGE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7029-1513-005 |
|---|---|
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SSMC |
| Connector Type | Male Pin, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 12.4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Includes | 1 Nut, 1 Connector, 1 Lockwasher |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Panel Mount, End Launch, Board Edge |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 46.08 | |
| 10 | $ 42.29 | |||
| 25 | $ 40.66 | |||
| 50 | $ 39.31 | |||
| 100 | $ 37.14 | |||
| 250 | $ 36.05 | |||
Description
General part information
7029-1513 Series

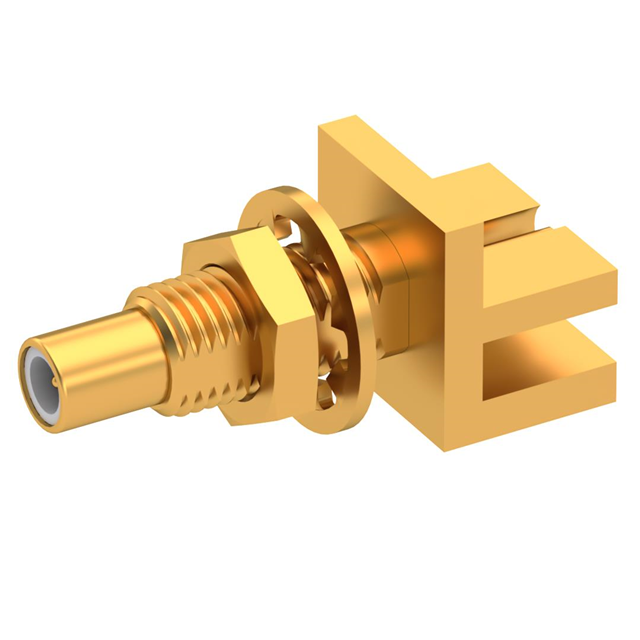

SSMC Connector Jack, Male Pin 50 Ohms Board Edge, End Launch; Panel Mount Solder
