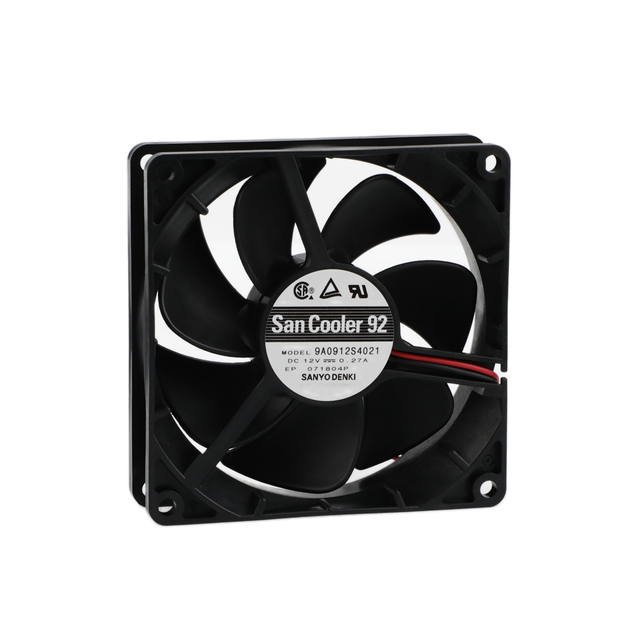

9A0912S4021

Active

Sanyo Denki America Inc.

FAN AXIAL 92X25MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Numbering System DC Fan +1

9A0912S4021

Active

Sanyo Denki America Inc.

FAN AXIAL 92X25MM 12VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Numbering System DC Fan +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9A0912S4021

Air Flow	58.6 CFM
Air Flow	1.64 m³/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	270 mA
Fan Type	Tubeaxial
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	39 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	3.24 W
RPM	3550 RPM
Static Pressure	0.225 in H2O
Static Pressure	56 Pa
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	6 VDC
Weight	0.222 lb
Weight	100.7 g
Width [y]	25 mm

9A0912 Series

Part	Air Flow	Air Flow	Weight	Weight	Power (Watts)	Material - Frame	Termination	Material - Blade	Width [y]	Voltage Range [Min]	Voltage Range [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Static Pressure	Static Pressure	RPM	Lifetime @ Temp.	Approval Agency	Current Rating (Amps)	Bearing Type	Fan Type	Noise	Features	Air Flow
Sanyo Denki America Inc. 9A0912L4021	0.79 mł/min	28.2 CFM	0.222 lb	100.7 g	840 mW	Plastic	2 Wire Leads	Plastic	25 mm	7 V	13.8 VDC	-20 °C	70 °C	-20 C	70 °C	12 VDC	0.054 in H2O	13.4 Pa	1750 RPM	40000 Hrs	CSA TUV UL	70 mA	Ball	Tubeaxial	23 dB(A)
Sanyo Denki America Inc. 9A0912L4D01	0.79 mł/min	28.2 CFM	0.222 lb	100.7 g	840 mW	Plastic	3 Wire Leads	Plastic	25 mm	7 V	13.8 VDC	-20 °C	70 °C	-20 C	70 °C	12 VDC	0.054 in H2O	13.4 Pa	1750 RPM	40000 Hrs	CSA TUV UL	70 mA	Ball	Tubeaxial	23 dB(A)	Locked Rotor Sensor
Sanyo Denki America Inc. 9A0912L402	0.79 mł/min	28.2 CFM	0.222 lb	100.7 g	840 mW	Plastic	2 Wire Leads	Plastic	25 mm	7 V	13.8 VDC	-20 °C	70 °C	-20 C	70 °C	12 VDC	0.054 in H2O	13.4 Pa	1750 RPM	40000 Hrs	CSA TUV UL	70 mA	Ball	Tubeaxial	23 dB(A)
Sanyo Denki America Inc. 9A0912H4021	51.2 CFM		0.222 lb	100.7 g	2.52 W	Plastic	2 Wire Leads	Plastic	25 mm	6 VDC	13.8 VDC	-20 °C	70 °C	-20 C	70 °C	12 VDC	0.177 in H2O	44.1 Pa	3150 RPM	40000 Hrs	CSA TUV UL	0.21 A	Ball	Tubeaxial	33 dB(A)		1.43 m³/min
Sanyo Denki America Inc. 9A0912F4021	1.23 m³/min	43.8 CFM	0.222 lb	100.7 g	1.68 W	Plastic	2 Wire Leads	Plastic	25 mm	6 VDC	13.8 VDC	-20 °C	70 °C	-20 C	70 °C	12 VDC	0.129 in H2O	32.1 Pa	2650 RPM	40000 Hrs	CSA TUV UL	140 mA	Ball	Tubeaxial	30 dB(A)
Sanyo Denki America Inc. 9A0912S4D011	1.64 m³/min	58.6 CFM	0.222 lb	100.7 g	3.24 W	Plastic	3 Wire Leads	Plastic	25 mm	6 VDC	13.8 VDC	-20 °C	60 °C	-20 C	60 °C	12 VDC	0.225 in H2O	56 Pa	3550 RPM	40000 Hrs	CSA TUV UL	270 mA	Ball	Tubeaxial	39 dB(A)	Locked Rotor Sensor
Sanyo Denki America Inc. 9A0912M402	1.03 m³/min	36.7 CFM	0.222 lb	100.7 g	1.44 W	Plastic	2 Wire Leads	Plastic	25 mm	6 VDC	13.8 VDC	-20 °C	70 °C	-20 C	70 °C	12 VDC	0.091 in H2O	22.7 Pa	2250 RPM	40000 Hrs	CSA TUV UL	120 mA	Ball	Tubeaxial	27 dB(A)
Sanyo Denki America Inc. 9A0912H401	51.2 CFM		0.222 lb	100.7 g	2.52 W	Plastic	3 Wire Leads	Plastic	25 mm	6 VDC	13.8 VDC	-20 °C	70 °C	-20 C	70 °C	12 VDC	0.177 in H2O	44.1 Pa	3150 RPM	40000 Hrs	CSA TUV UL	0.21 A	Ball	Tubeaxial	33 dB(A)	Locked Rotor Protection Speed Sensor (Tach)	1.43 m³/min
Sanyo Denki America Inc. 9A0912S4021	1.64 m³/min	58.6 CFM	0.222 lb	100.7 g	3.24 W	Plastic	2 Wire Leads	Plastic	25 mm	6 VDC	13.8 VDC	-20 °C	60 °C	-20 C	60 °C	12 VDC	0.225 in H2O	56 Pa	3550 RPM	40000 Hrs	CSA TUV UL	270 mA	Ball	Tubeaxial	39 dB(A)
Sanyo Denki America Inc. 9A0912F402	1.23 m³/min	43.8 CFM	0.222 lb	100.7 g	1.68 W	Plastic	2 Wire Leads	Plastic	25 mm	6 VDC	13.8 VDC	-20 °C	70 °C	-20 C	70 °C	12 VDC	0.129 in H2O	32.1 Pa	2650 RPM	40000 Hrs	CSA TUV UL	140 mA	Ball	Tubeaxial	30 dB(A)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.75
		10	$ 13.12
		28	$ 12.34
		56	$ 11.87
		112	$ 10.94
		252	$ 10.23
		504	$ 10.08

Description

General part information

9A0912 Series

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 58.6 CFM (1.64mł/min) 2 Wire Leads
