BU-48B
ActiveMueller Electric Co
TEST CLIP, AUTOMOTIVE, 12.7 MM, 10 A
Deep-Dive with AI
Search across all available documentation for this part.
BU-48B
ActiveMueller Electric Co
TEST CLIP, AUTOMOTIVE, 12.7 MM, 10 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BU-48B |
|---|---|
| Color | Natural |
| Current Rating (Amps) | 10 A |
| Insulation | Non-Insulated |
| Jaw Opening | 12.7 mm |
| Jaw Opening | 0.5 in |
| Length | 2 " |
| Length | 2 " |
| Length | 50.8 mm |
| Plating | Zinc |
| Quantity | 1 Box |
| Termination | Crimp or Screw |
| Type | Heavy Duty, 3 Sided Jaw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BU-48 Series

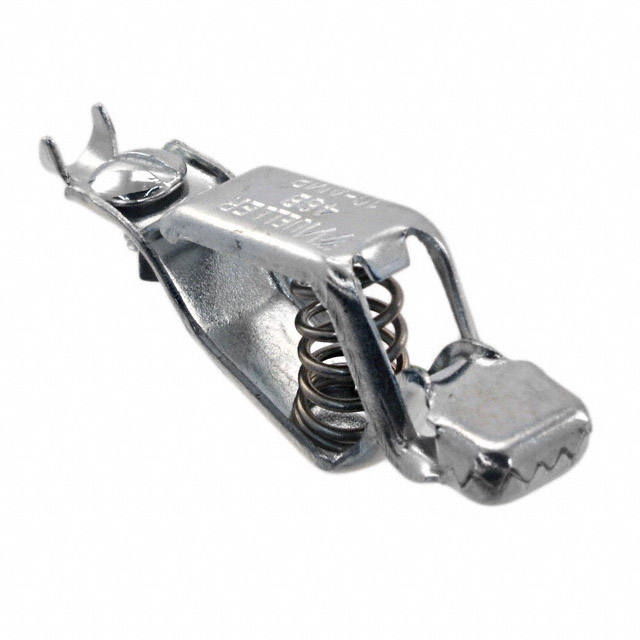

The BU-48B is a 10A Automotive Analyzer Clip of zinc-plated steel with 0.5-inch jaw opening. This clip features teeth mesh on three sides of the jaw. It is primary used for automotive analyzers and test systems. Uses BU-49 Series PVC Insulator.
