0369200502

Active

Molex

RECTANGULAR CABLE ASSEMBLIES PICO-EZMATE 05P OTS ASSY

Search across all available documentation for this part.

Active

Molex

RECTANGULAR CABLE ASSEMBLIES PICO-EZMATE 05P OTS ASSY

Technical Specifications

Parameters and characteristics for this part

Part	Cable Termination	Shielding	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Rows	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Contact Finish	Number of Positions	Features	Length	Length	Length	Length [x]
Molex 0369200705	Crimp	Unshielded	3.94 µin	0.1 Ám	Socket to Socket	1	17.76 in	450 mm	1.2 mm	0.047 "	Gold	7
Molex 0369200305	Crimp	Unshielded	3.94 µin	0.1 Ám	Socket to Socket	1	17.76 in	450 mm	1.2 mm	0.047 "	Gold		Latch Holder
Molex 0369200300	Crimp	Unshielded	3.94 µin	0.1 Ám	Socket to Socket	1			1.2 mm	0.047 "	Gold		Latch Holder	0.164 '	50 mm	1.97 "
Molex 0369200502	Crimp	Unshielded	3.94 µin	0.1 Ám	Socket to Socket	1			1.2 mm	0.047 "	Gold		Latch Holder	0.492 ft	150 mm	5.91 "
Molex 0369200303	Crimp	Unshielded	3.94 µin	0.1 Ám	Socket to Socket	1	0.984 '	300 mm	1.2 mm	0.047 "	Gold		Latch Holder				11.81 "
Molex 0369200506	Crimp	Unshielded	3.94 µin	0.1 Ám	Socket to Socket	1			1.2 mm	0.047 "	Gold		Latch Holder	1.97 ft	600 mm
Molex 0369200400	Crimp	Unshielded	3.94 µin	0.1 Ám	Socket to Socket	1			1.2 mm	0.047 "	Gold	4	Latch Holder	0.164 '	50 mm	1.97 "
Molex 0369200605	Crimp	Unshielded	3.94 µin	0.1 Ám	Socket to Socket	1	17.76 in	450 mm	1.2 mm	0.047 "	Gold	6	Latch Holder
Molex 0369200301	Crimp	Unshielded	3.94 µin	0.1 Ám	Socket to Socket	1			1.2 mm	0.047 "	Gold		Latch Holder	0.328 '	100 mm	3.94 "
Molex 0369200606	Crimp	Unshielded	3.94 µin	0.1 Ám	Socket to Socket	1			1.2 mm	0.047 "	Gold	6	Latch Holder	1.97 ft	600 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

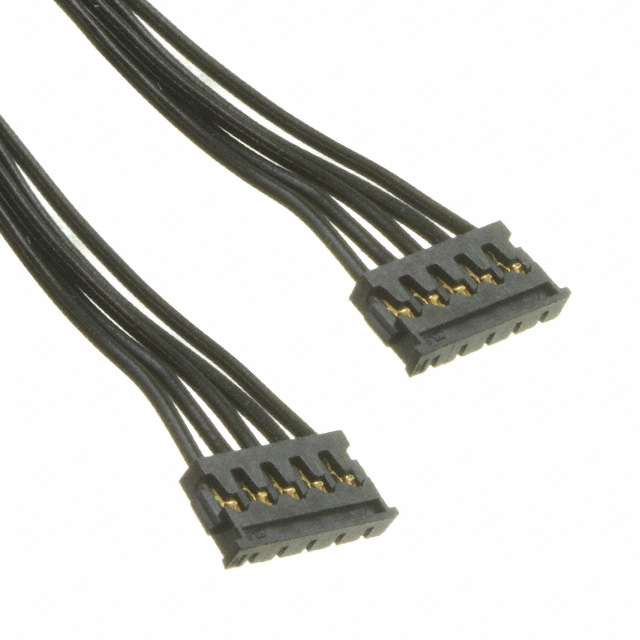

5 Position Cable Assembly Rectangular Socket to Socket 0.492' (150.00mm, 5.91")

Technical documentation and resources

No documents available
