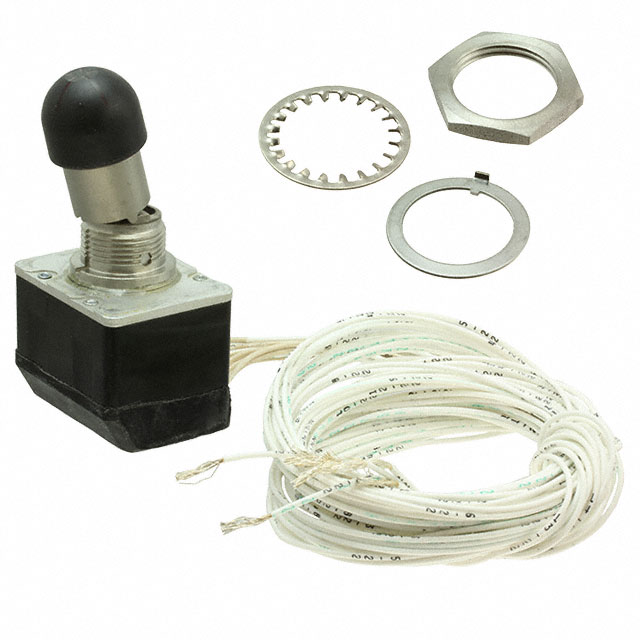

4TL32-3D

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE 4PDT 15A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE 4PDT 15A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	4TL32-3D

Actuator Length [x]	38.86 mm
Actuator Material	Nickel Plated
Actuator Type	Locking Lever
Bushing Thread	3/4-20
Circuit	4PDT
Current Rating (Amps)	15 A
Illumination	Illuminated
Illumination Type, Color	Incandescent, Red
Illumination Voltage (Nominal)	28 VAC/DC
Ingress Protection	Environment Sealed
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-65 ░C
Switch Function	On-On
Termination Style	Wire Leads
Voltage Rating - AC	125 V

Part	Voltage Rating - AC	Actuator Type	Ingress Protection	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Panel Cutout Dimensions [diameter]	Bushing Thread	Illumination	Termination Style	Switch Function	Illumination Type, Color	Actuator Length [x]	Actuator Material	Illumination Voltage (Nominal)
Honeywell Sensing and Productivity Solutions 4TL35-12B	125 V	Locking Lever	Environment Sealed	15 A	71 °C	-65 ░C	4PDT	12.4 mm	15/32-32	Non-Illuminated	Screw Terminal
Honeywell Sensing and Productivity Solutions 4TL35-3D	125 V	Locking Lever	Environment Sealed	15 A	71 °C	-65 ░C	4PDT	12.4 mm	15/32-32	Non-Illuminated	Screw Terminal	On-On
Honeywell Sensing and Productivity Solutions 4TL32-3D	125 V	Locking Lever	Environment Sealed	15 A	71 °C	-65 ░C	4PDT		3/4-20	Illuminated	Wire Leads	On-On	Incandescent Red	38.86 mm	Nickel Plated	28 VAC/DC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 1373.24

General part information

Toggle Switch 4PDT Panel Mount
