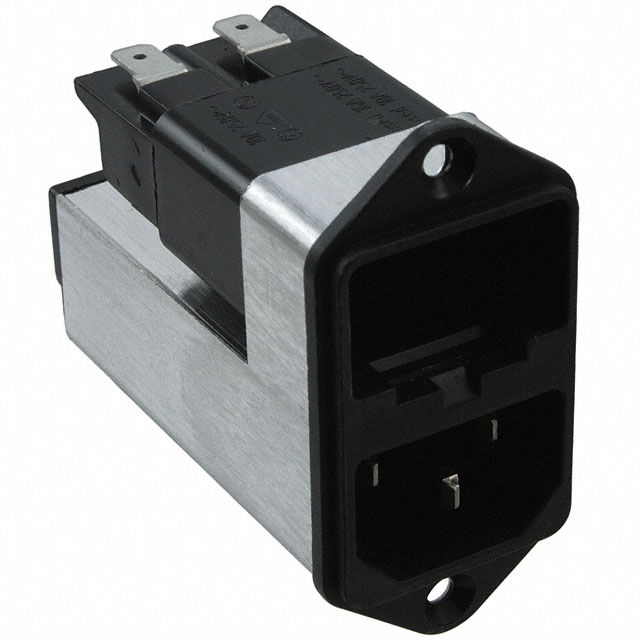

4303.5001

Active

SCHURTER Inc.

CONNECTOR: AC SUPPLY; SOCKET; MALE; 1A; 250VAC; C14 (E); KFC

Search across all available documentation for this part.

Active

SCHURTER Inc.

CONNECTOR: AC SUPPLY; SOCKET; MALE; 1A; 250VAC; C14 (E); KFC

Technical Specifications

Parameters and characteristics for this part

Specification	4303.5001

Accomodates a Fuse	True
Approval Agency	ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	1 A
Current Rating - Filter	1 A
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	28.6 mm
Panel Cutout Dimensions [y]	50 mm
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Filter Type	Approval Agency	Current Rating - Filter	Material Flammability Rating	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - Appliance Inlet	Termination	Termination	Connector Style	Ingress Protection	Fuse Holder, Drawer	Mounting Type	Current Rating - Appliance Inlet	Connector Type	Accomodates a Fuse
SCHURTER Inc. 4303.5001	Filtered (EMI RFI) - Commercial	cULus ENEC	1 A	UL94 V-0	50 mm	28.6 mm	250 VAC	0.189 " 4.8 mm	Quick Connect	IEC 320-C14	IP40	Drawer Sold Separate	Flange Panel Mount	1 A	Receptacle Male Blades - Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
