RJ2S-CL-D24

Active

IDEC

POWER RELAY, LED INDICATOR, DPDT, 24 VDC, 8 A, RJ SERIES, SOCKET, NON LATCHING

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RJ2S-CL-D24

Approval Agency	CE, VDE, cURus, CSA
Coil Current	25.7 mA
Coil Resistance	1.08 kOhms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	8 A
Features	Lighted Indicator
Mounting Type	Socketable
Must Operate Voltage	16.8 VDC
Must Release Voltage	2.4 VDC
Operate Time	15 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	250 VAC
Termination Style	Plug In

RJ2S-C Series

Part	Contact Material	Relay Type	Approval Agency	Contact Form	Coil Type	Must Release Voltage	Contact Rating (Current)	Mounting Type	Coil Resistance	Features	Coil Voltage	Coil Current	Release Time	Operate Time	Termination Style	Must Operate Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage
IDEC RJ2S-CLD-D24	Silver Nickel (AgNi)	General Purpose	CE CSA cURus VDE	DPDT (2 Form C)	Non Latching	2.4 VDC	8 A	Socketable	1.08 kOhms	Diode Lighted Indicator	24 VDC	25.7 mA	20 ms	20 ms	Plug In	16.8 VDC	-40 °C	70 °C	250 VAC
IDEC RJ2S-CL-D24	Silver Nickel (AgNi)	General Purpose	CE CSA cURus VDE	DPDT (2 Form C)	Non Latching	2.4 VDC	8 A	Socketable	1.08 kOhms	Lighted Indicator	24 VDC	25.7 mA	10 ms	15 ms	Plug In	16.8 VDC	-40 °C	70 °C	250 VAC
IDEC RJ2S-C-A120	Silver Nickel (AgNi)	General Purpose	CE CSA cURus VDE	DPDT (2 Form C)	Non Latching	36 VAC	8 A	Socketable	6.4 kOhms		120 VAC	7.5 mA	10 ms	15 ms	Plug In	96 VAC	-40 °C	70 °C	250 VAC
IDEC RJ2S-CD-D5	Silver Nickel (AgNi)	General Purpose	CE CSA cURus VDE	DPDT (2 Form C)	Non Latching	0.5 VDC	8 A	Socketable	47.2 Ohms	Diode	5 VDC	106 mA	10 ms	15 ms	Plug In Quick Connect - 0.187" (4.7mm)	3.5 VDC	-40 °C	70 °C	30 VDC 250 VAC
IDEC RJ2S-C-A240	Silver Nickel (AgNi)	General Purpose	CE CSA cURus VDE	DPDT (2 Form C)	Non Latching	72 VAC/DC	8 A	Socketable	25.57 kOhms		240 VAC	3.7 mA	10 ms	15 ms		192 VAC	-40 °C	70 °C	30 VDC 250 VAC
IDEC RJ2S-CD-D12	Silver Nickel (AgNi)	General Purpose	CE CSA cURus VDE	DPDT (2 Form C)	Non Latching	1.2 VDC	8 A	Socketable	271 Ohms	Diode	12 VDC	44.2 mA	20 ms	20 ms	Plug In	8.4 VDC	-40 °C	70 °C	250 VAC
IDEC RJ2S-C-D12	Silver Nickel (AgNi)	General Purpose	CE CSA cURus VDE	DPDT (2 Form C)	Non Latching	1.2 VDC	8 A	Socketable	271 Ohms		12 VDC	44.2 mA	10 ms	15 ms		8.4 VDC	-40 °C	70 °C	30 VDC 250 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.57
		10	$ 11.20
		25	$ 10.70
		50	$ 10.33
		100	$ 9.97
		250	$ 9.52
		500	$ 9.20
		1000	$ 8.88
Newark	Each	1	$ 13.66
		5	$ 13.31
		10	$ 12.97
		25	$ 12.29
		50	$ 11.61
		100	$ 10.92

Description

General part information

RJ2S-C Series

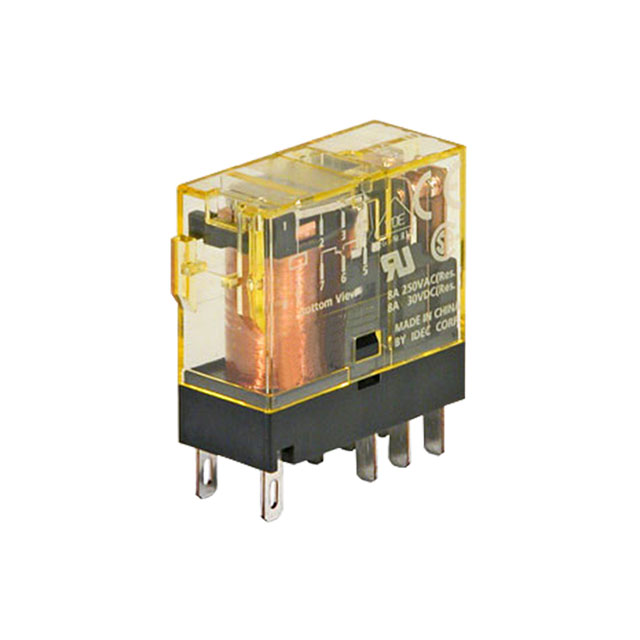

The RJ2S-CL-D24 is a 2-pole plug-in Power Relay with LED indicator, 8A contact rating, 24VDC coil voltage and silver-nickel alloy contacts. It uses a unique light guide to give you a brighter and more noticeable status indicator from multiple directions.
