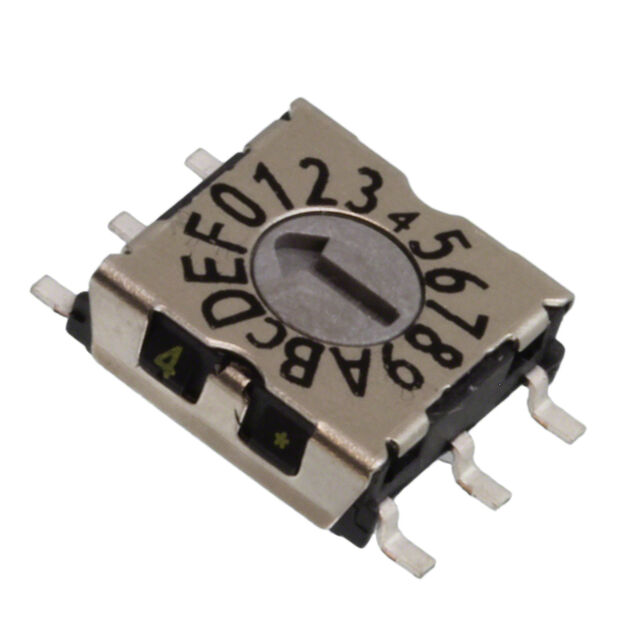

P25SMT103TR
ActiveAPEM
SWITCH ROTARY DIP HEX 0.1A 42V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P25SMT103TR
ActiveAPEM
SWITCH ROTARY DIP HEX 0.1A 42V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | P25SMT103TR |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool |
| Circuit | Hexadecimal |
| Contact Finish | Gold |
| Current Rating (Amps) | 100 mA |
| Height Above Board | 0.098 in |
| Height Above Board | 2.5 mm |
| Length [x] | 7 mm |
| Length [x] | 0.276 in |
| Mounting Type | Surface Mount |
| Number of Positions | 16 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -50 °C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | Gull Wing |
| Voltage Rating | 42 VDC |
| Washable | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.54 | |
| 10 | $ 3.79 | |||
| 25 | $ 3.51 | |||
| 100 | $ 3.13 | |||
| 250 | $ 2.91 | |||
| 500 | $ 2.76 | |||
| Digi-Reel® | 1 | $ 4.54 | ||
| 10 | $ 3.79 | |||
| 25 | $ 3.51 | |||
| 100 | $ 3.13 | |||
| 250 | $ 2.91 | |||
| 500 | $ 2.76 | |||
| Tape & Reel (TR) | 1700 | $ 2.54 | ||
| 3400 | $ 2.43 | |||
Description
General part information
P25SM Series
Dip Switch Hexadecimal 16 Position Surface Mount Rotary for Tool Actuator 100mA 42VDC
