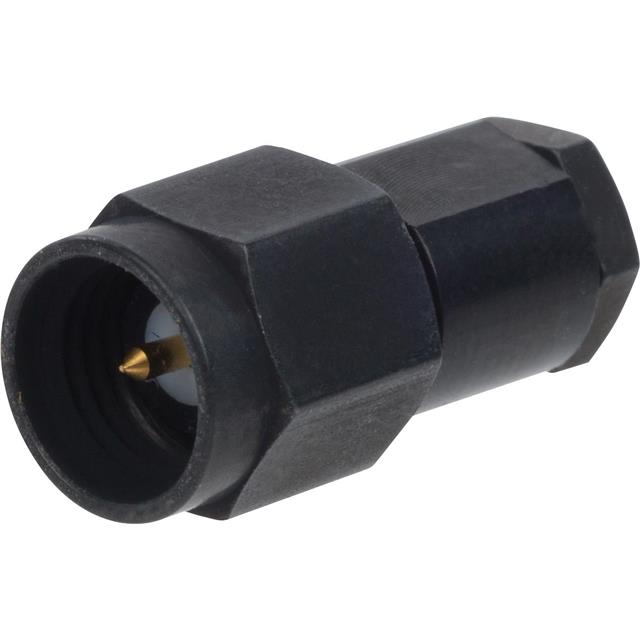

2911-61008

Active

Amphenol SV Microwave

RF / COAXIAL CONNECTOR, SMA COAXIAL, STRAIGHT PLUG, SOLDER, 50 OHM, T-FLEX 405, BERYLLIUM COPPER

Search across all available documentation for this part.

Active

Amphenol SV Microwave

RF / COAXIAL CONNECTOR, SMA COAXIAL, STRAIGHT PLUG, SOLDER, 50 OHM, T-FLEX 405, BERYLLIUM COPPER

Technical Specifications

Parameters and characteristics for this part

Specification	2911-61008

Body Finish	Chromate, Black
Body Material	Stainless Steel
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Black
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp

Part	Connector Type	Contact Termination	Mating Cycles	Dielectric Material	Mounting Type	Cable Group	Cable Group	Shield Termination	Housing Color	Body Material	Number of Ports	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Frequency - Max [Max]	Impedance	Connector Style	Body Finish	Color	For Use With/Related Products	Accessory Type	Features
Amphenol SV Microwave 2911-61016	Male Pin Plug	Solder	500	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Semi Rigid	0.047 in	Solder	Silver	Stainless Steel	1	Gold	-65 ░C	165 °C	Beryllium Copper	26.5 GHz	50 Ohms	SMA
Amphenol SV Microwave 2911-61008	Male Pin Plug	Solder	500	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	RG-405 (.085" Semi Rigid)		Clamp	Black	Stainless Steel	1	Gold	-65 ░C	165 °C	Beryllium Copper	18 GHz	50 Ohms	SMA	Chromate Black
Amphenol SV Microwave 2911-61009										Stainless Steel								SMA	Chromium	Black	SMA Plugs	Cap (Cover) Dust	Cord

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 86.79

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
